FDUA224KXE4 HEAT EXCH. AND FAN

Name: FDUA224KXE4 HEAT EXCH. AND FAN
SKU: FDUA224KXE4 HEAT EXCH. AND FAN
Availability: InStock

FDUA224KXE4 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

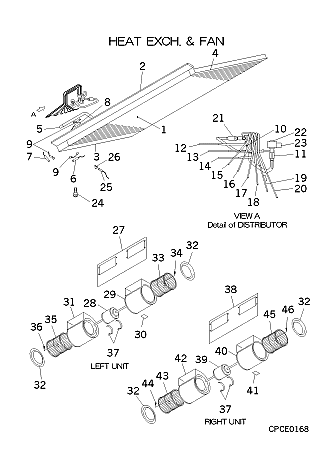

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJD301A036G

HEAT EXCH ASSY(AIR

[1-23] Contact

PJD301A036

HEAT EXCH A

Contact

[2] Contact

PJD141A002B

PLATE BAFF

Contact

Notes: FRONT

[3] Contact

PJD141A007

PLATE BAFF

Contact

Notes: LEFT

[4] Contact

PJD141A008

PLATE BAFF

Contact

Notes: RIGHT

[5] Contact

PJD315D057

Contact

[6] In Stock

PJA551A005BL

SENSOR

Notes: THI-R1(U-BEND) Show Image

[7] In Stock

PJA551A005BT

SENSOR(TEMP

Notes: THI-R2(CAPILLARY) Show Image

[8] In Stock

PJA551A005BN

SENSOR

Notes: THI-R3(GAS HEADER) Show Image

[9] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[10] Contact

SSA315A206J

DISTRIBUTOR

Contact

[10-20] Contact

PJD315A061

DISTRIBUTOR

Contact

[11] In Stock

SSA357A059T

STRAINER

[12] Contact

PJD321A041

PIPE ASSY

Contact

Notes: !D3.0XD4.0 L150

[13] Contact

PJD321A042

PIPE ASSY

Contact

Notes: !D3.0XD4.0 L150

[14] Contact

PJD321A043

PIPE ASSY

Contact

Notes: !D3.0XD4.0 L150

[15] Contact

PJD321A044

PIPE ASSY

Contact

Notes: !D3.0XD4.0 L150

[16] Contact

PJD321A045

PIPE ASSY

Contact

Notes: !D3.0XD4.0 L150

[17] Contact

PJD321A046

PIPE ASSY

Contact

Notes: !D3.0XD4.0 L150

[18] Contact

PJD321A047

PIPE ASSY

Contact

Notes: !D3.0XD4.0 L150

[19] Contact

PJD321A048

PIPE ASSY

Contact

Notes: !D2.4XD4.0 L185

[20] Contact

PJD321A049

PIPE ASSY

Contact

Notes: !D2.4XD4.0 L185

[21] Out of Stock

SSA357A059B

STRAINER

[22] In Stock

SSA387F039

EXP VALVE

Notes: SM Show Image

[23] In Stock

SSA382F229C

COIL, SOLENOID

Notes: FOR SM, LENGTH 77.5CM - EEV COIL Show Image

[24] In Stock

PJD536A002B

SWITCH ASSY

Notes: FS Show Image

[25] In Stock

PJA551A010T

SENSOR(TEMP

Notes: THI-A Show Image

[25-26] Contact

PJD551A001C

SENSOR ASSY

Contact

[26] Contact

SSA937C290

CLIP

Contact

Notes: FOR THI-A

[27] In Stock

PJD116A014A

BRAKET FAN

Notes: LEFT UNIT

[28] In Stock

SSA511A363V

MOTOR AC

Notes: LEFT UNIT

[29-30] In Stock

PJD433A001F

CASING

Notes: LEFT UNIT

[30] Contact

RSA011H005

LABEL

Contact

[31] In Stock

PJD433A001C

CASING

Notes: LEFT UNIT

[32] In Stock

PDD433A003

SHROUD

[33-34] In Stock

SSA431C020B

IMPELLER

Notes: LEFT UNIT

[34] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

[35-36] In Stock

SSA431C020C

IMPELLER

Notes: LEFT UNIT

[36] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

[37] In Stock

PFA116A108

BRACKET

Show Image

[38] In Stock

PJD116A014

FAN BRACKET

Notes: RIGHT UNIT

[39] In Stock

SSA511A363V

MOTOR AC

Notes: LEFT UNIT

[40-41] In Stock

PJD433A001D

CASING

Notes: RIGHT UNIT, RIGHT SIDE OF RIGHT FAN EQUIP.

[41] Contact

RSA011H005

LABEL

Contact

[42] In Stock

PJD433A001A

CASING

Notes: RIGHT UNIT Show Image

[43-44] In Stock

SSA431C005

IMPELLER

Notes: RIGHT UNIT

[44] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

[45-46] In Stock

SSA431C005A

IMPELLER

Notes: RIGHT UNIT

[46] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

SKU: FDUA224KXE4 HEAT EXCH. AND FAN Category: Uncategorised
