Parts List
Key:
Instock.
Nilstock.
Contact MRE.

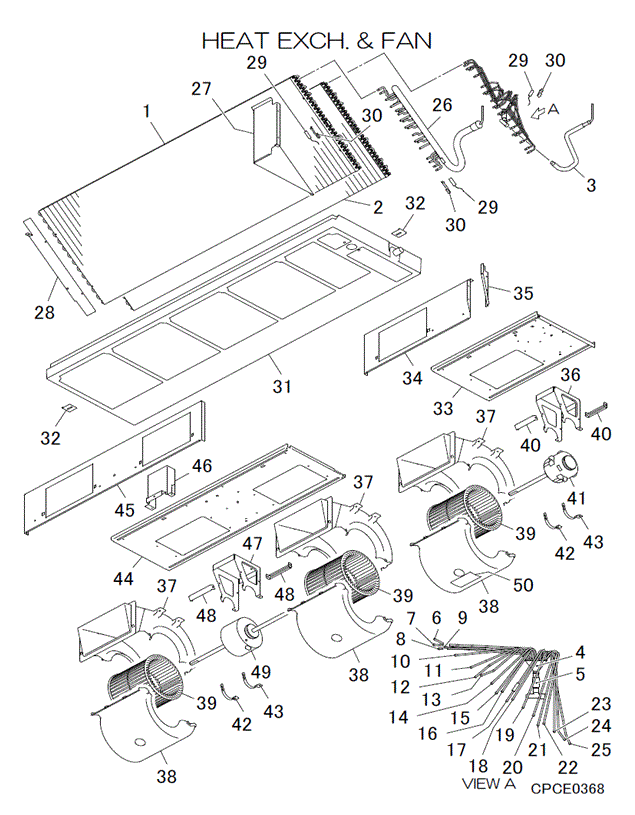

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
Out of Stock
PJG311A005
HEAT EXCH AIR
[1-30]
In Stock
PJG301A008A
HEAT EXCH ASSY AIR
Notes: Indoor Heat Exchanger Coil assembly
[2]
Out of Stock
PJG311A005A
HEAT EXCH AIR
[3]
Contact
PJG304A006A
PIPING ASSY
Contact
[4]
Contact
SSA315A306Y
DISTRIBUTOR
Contact
[4-25]
Contact
PJG315A017
DISTRIBUTOR ASSY
Contact
[5]
In Stock
SSA357A051
STRAINER
[6]
Contact
PJG315B007
CAPILLARY
Contact
[7]
Contact
PJG315B007A
CAPILLARY
Contact
[8]
Contact
PJG315B007B
CAPILLARY
Contact
[9]
Contact
PJG315B007C
CAPILLARY
Contact
[10]
Contact
PJG315B007D
CAPILLARY
Contact
[11]
Contact
PJG315B007F
CAPILLARY
Contact
[12]
Contact
PJG315B007G
CAPILLARY
Contact
[13]
Contact
PJG315B007H
CAPILLARY
Contact
[14]
Contact
PJG315B007J
CAPILLARY
Contact
[15]
Contact
PJG315B007K
CAPILLARY
Contact
[16]
Contact
PJG315B007L
CAPILLARY
Contact
[17]
Contact
PJG315B007M
CAPILLARY
Contact
[18]
Contact
PJG315B007N
CAPILLARY
Contact
[19]
Contact
PJG315B007P
CAPILLARY
Contact
[20]
Contact
PJG315B007R
CAPILLARY
Contact
[21]
Contact
PJG315B007S
CAPILLARY
Contact
[22]
Contact
PJG315B007T
CAPILLARY
Contact
[23]
Contact
PJG315B007V
CAPILLARY
Contact
[24]
Contact
PJG315B007W
CAPILLARY
Contact
[25]
Contact
PJG315B007Y
CAPILLARY
Contact
[27]
Contact
PJG141A009
PLATE,BAFFLE(R)
Contact
[28]
Contact
PJG141A011
PLATE ASSY,BAFFLE
Contact
[29]
In Stock
PJF551A002H
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, THI-R1,2,3 - LENGTH 68.5CM Show Image
[30]
In Stock
PSA941F001
SPRING LEAF
[31]
In Stock
PJG454A007A
PAN ASSY, DRAIN
Notes: ***INCLUDES DRAIN PLUG SSA326A049***
[32]
Out of Stock
PJG116A009
BRACKET
[33]
Contact
PJG119A062
PLATE(BASE,FAN)
Contact
[34]
Contact
PJG119A063
PLATE,FAN
Contact
[35]
In Stock
PJG119A020
PLATE(FAN)
[36]
In Stock
PJG116A012A
BRACKET(MOTOR)
[37]
In Stock
PJG433B006
CASING(U)
[38]
In Stock
PJG433B004
CASING(L)
[39]
In Stock
SSA431D094
IMPELLER
[40]
In Stock
PJG119A002
PLATE
[41]
In Stock
SSA512T142B
MOTOR, DC
[42]
In Stock
PJG116A063
BRACKET(MOTOR)
[43]
In Stock
PJG116A063A
BRACKET(MOTOR)
[44]
Contact
PJG119A062A
PLATE(BASE,FAN)
Contact
[45]
Contact
PJG119A063A
PLATE,FAN
Contact
[46]
In Stock
PJG142A027
BOX ASSY(DRIVER)
[47]
In Stock
PJG116A012
BRACKET(MOTOR)
[48]
In Stock
PJG119A002A
PLATE
[49]
In Stock
SSA512T123C
MOTOR DC
[50]
In Stock
PSA011H046
LABEL,NOTICE
