FDUA200VH/C CONTROL AND PARTS SET

Name: FDUA200VH/C CONTROL AND PARTS SET
SKU: FDUA200VH/C CONTROL AND PARTS SET
Availability: InStock

FDUA200VH/C CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

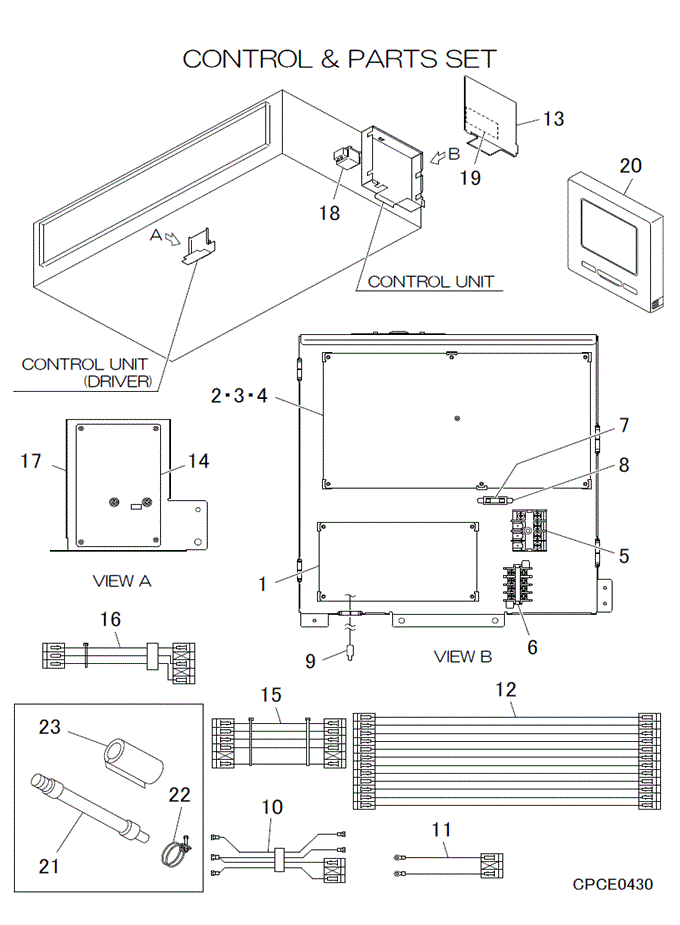

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228SG

PWB ASSY (CONTROL)

Notes: For FDUA250VH/C - FUSE *F2* IS PART SSA564A149AC (2 AMP).

[1-12] Contact

PJG501A013MS

CONTROL UNIT

Contact

[2-4] Out of Stock

PJA505A248C

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS

[3] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F1 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[4] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F2 2A, 2 amp fuse

[5] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[6] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[7] In Stock

SSA564A149AL

FUSE(CURRENT)

Notes: F3 10A, 10A Show Image

[8] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[9] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A, THI-A - RETURN AIR SENSOR Show Image

[10] Contact

PJG504A017

HARNESS ASSY

Contact

Notes: TB1 1,TB1 2,TB1 3- FH,T2,CNW3

[11] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[12] In Stock

PJG504A024H

WIRING (PWB)

Notes: CNW2 PWB- CNW1 PWB Show Image

[13] In Stock

PJG142A031

LID,CONTROL BOX

[14] In Stock

PJA505A251C

PWB ASSY (MOTOR)

Show Image

[14-17] Contact

PJG501A015C

CONTROL UNIT (DRIVER)

Contact

[15] Contact

PJG504A015A

WIRING (CNM)

Contact

Notes: CNM1 PWB- CNM PWB

[16] In Stock

PJG504A016

WIRING(FM)

Notes: CNFM2- CNFM PWB Show Image

[17] In Stock

PJG142A034A

LID ASSY(DRIVER)

[18] In Stock

SSA554B115

REACTOR

[19] Contact

PJG011G021B

LABEL, WIRING

Contact

[20] Contact

PJZ502A031GC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EXZ3A, ECO TOUCH - SALES ITEM

[21] Contact

PSA423A802

HOSE ASSY, DRAIN

Contact

[21-23] In Stock

PJF008A001CD

PARTS SET

[22] In Stock

V300Y32

HOSE CLAMP

[23] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[24] In Stock

PJG006A005B

INSTALLATION SET

Notes: HAS PLUGS ON BOTH ENDS - suits many /C service codes

[25] Contact

PJG011F084CS

LABEL,MODEL NAME

Contact
