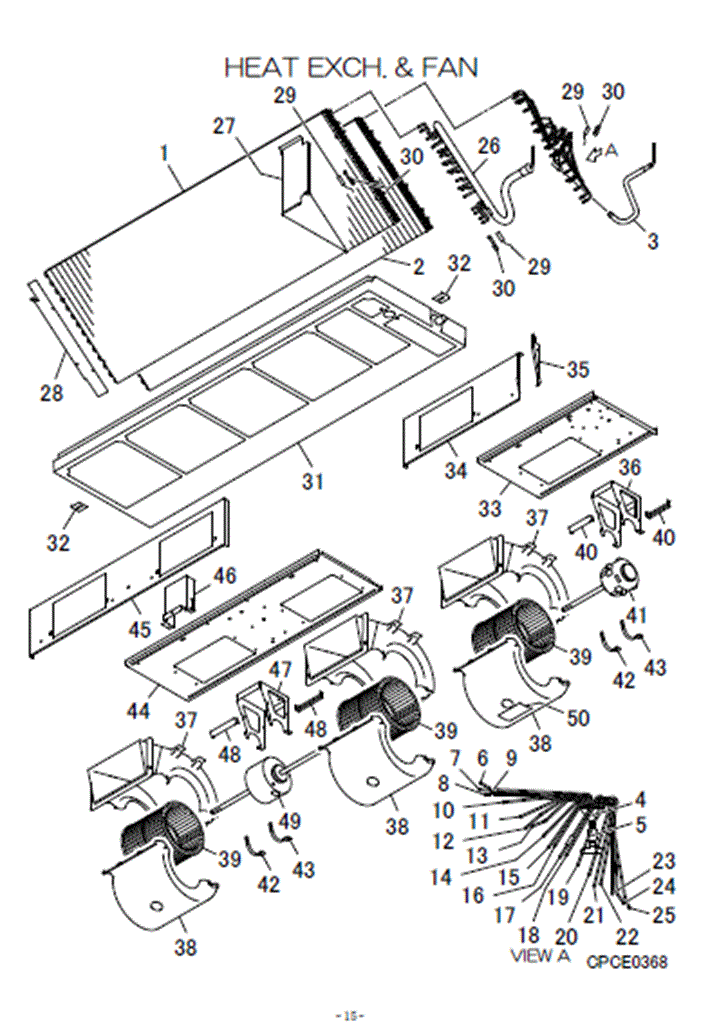

FDUA200VH/1 HEAT EXCH. AND FAN

FDUA200VH/1 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
PJG311A005
HEAT EXCH AIR
Notes: ?
[1-30] In Stock
PJG301A008A
HEAT EXCH ASSY AIR
Notes: Indoor Heat Exchanger Coil assembly
[2] Out of Stock
PJG311A005A
HEAT EXCH AIR
Notes: ?
[3] Contact
PJG304A006A
PIPING ASSY
Contact
[4] Contact
SSA315A306Y
DISTRIBUTOR
Contact
Notes: ?
[4-25] Contact
PJG315A017
DISTRIBUTOR ASSY
Contact
[5] In Stock
SSA357A051
STRAINER
Show Image
SSA357A051
[6] Contact
PJG315B007
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L360
[7] Contact
PJG315B007A
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L340
[8] Contact
PJG315B007B
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L320
[9] Contact
PJG315B007C
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L280
[10] Contact
PJG315B007D
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L260
[11] Contact
PJG315B007F
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L240
[12] Contact
PJG315B007G
CAPILLARY
Contact
Notes: ?f2.0xf4.0 L240
[13] Contact
PJG315B007H
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L220
[14] Contact
PJG315B007J
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L220
[15] Contact
PJG315B007K
CAPILLARY
Contact
Notes: ?f2.4xf4.0 L220
[16] Contact
PJG315B007L
CAPILLARY
Contact
Notes: ?f2.2xf4.0 L220
[17] Contact
PJG315B007M
CAPILLARY
Contact
Notes: ?f2.0xf4.0 L240
[18] Contact
PJG315B007N
CAPILLARY
Contact
Notes: ?f2.2xf4.0 L240
[19] Contact
PJG315B007P
CAPILLARY
Contact
Notes: ?f2.8xf4.0 L240
[20] Contact
PJG315B007R
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L260
[21] Contact
PJG315B007S
CAPILLARY
Contact
Notes: ?f2.2xf4.0 L300
[22] Contact
PJG315B007T
CAPILLARY
Contact
Notes: ?f2.2xf4.0 L300
[23] Contact
PJG315B007V
CAPILLARY
Contact
Notes: ?f2.4xf4.0 L320
[24] Contact
PJG315B007W
CAPILLARY
Contact
Notes: ?f2.0xf4.0 L360
[25] Contact
PJG315B007Y
CAPILLARY
Contact
Notes: ?f1.8xf4.0 L360
[26] Contact
PJG315D020
HEADER ASSY,GAS
Contact
Notes: ?
[27] Contact
PJG141A009
PLATE,BAFFLE(R)
Contact
[28] Contact
PJG141A011
PLATE ASSY,BAFFLE
Contact
[29] In Stock
PJF551A002H
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, LENGTH 68.5CM Show Image
PJF551A002H
[30] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[31] In Stock
PJG454A007A
PAN ASSY, DRAIN
Notes: ***INCLUDES DRAIN PLUG SSA326A049***
[32] In Stock
PJG116A009
BRACKET
Show Image
PJG116A009
[33] Contact
PJG119A062
PLATE(BASE,FAN)
Contact
Notes: RIGHT
[34] Contact
PJG119A063
PLATE,FAN
Contact
Notes: RIGHT
[35] In Stock
PJG119A020
PLATE(FAN)
Notes: RIGHT Show Image
PJG119A020
[36] In Stock
PJG116A012A
BRACKET(MOTOR)
Notes: RIGHT
[37] In Stock
PJG433B006
CASING(U)
[38] In Stock
PJG433B004
CASING(L)
[39] In Stock
SSA431D094
IMPELLER
Notes: FAN BARREL
[40] In Stock
PJG119A002
PLATE
Notes: RIGHT
[41] In Stock
SSA512T142Z
MOTOR,DC
Notes: RIGHT, SINGLE STAFT
[42] In Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[43] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[44] Contact
PJG119A062A
PLATE(BASE,FAN)
Contact
Notes: LEFT
[45] Contact
PJG119A063A
PLATE,FAN
Contact
Notes: LEFT
[46] Contact
PJG142A027
BOX ASSY(DRIVER)
Contact
Notes: LEFT
[47] In Stock
PJG116A012
BRACKET(MOTOR)
Notes: LEFT
[48] In Stock
PJG119A002A
PLATE
Notes: LEFT
[49] In Stock
SSA512T123C
MOTOR DC
Notes: LEFT
[50] Contact
PSA011H046
LABEL,NOTICE
Contact
