FDUA200VG/F CONTROL AND PARTS SET

Name: FDUA200VG/F CONTROL AND PARTS SET
SKU: FDUA200VG/F CONTROL AND PARTS SET
Availability: InStock

FDUA200VG/F CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

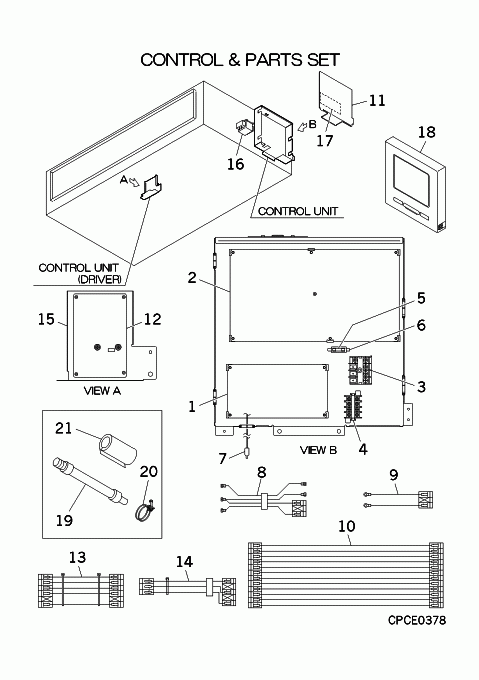

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228DN

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS, CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image

[1-10] Contact

PJG501A013GS

Contact

Notes: !

[2] Out of Stock

PJA505A248C

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS

[3] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

SSA564A149AL

FUSE(CURRENT)

Notes: F3 10A, 10A Show Image

[6] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[7] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A, THI-A - RETURN AIR SENSOR Show Image

[8] Contact

PJG504A017

HARNESS ASSY

Contact

Notes: TB1 1,TB1 2,TB1 3- FH,T2,CNW3

[9] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

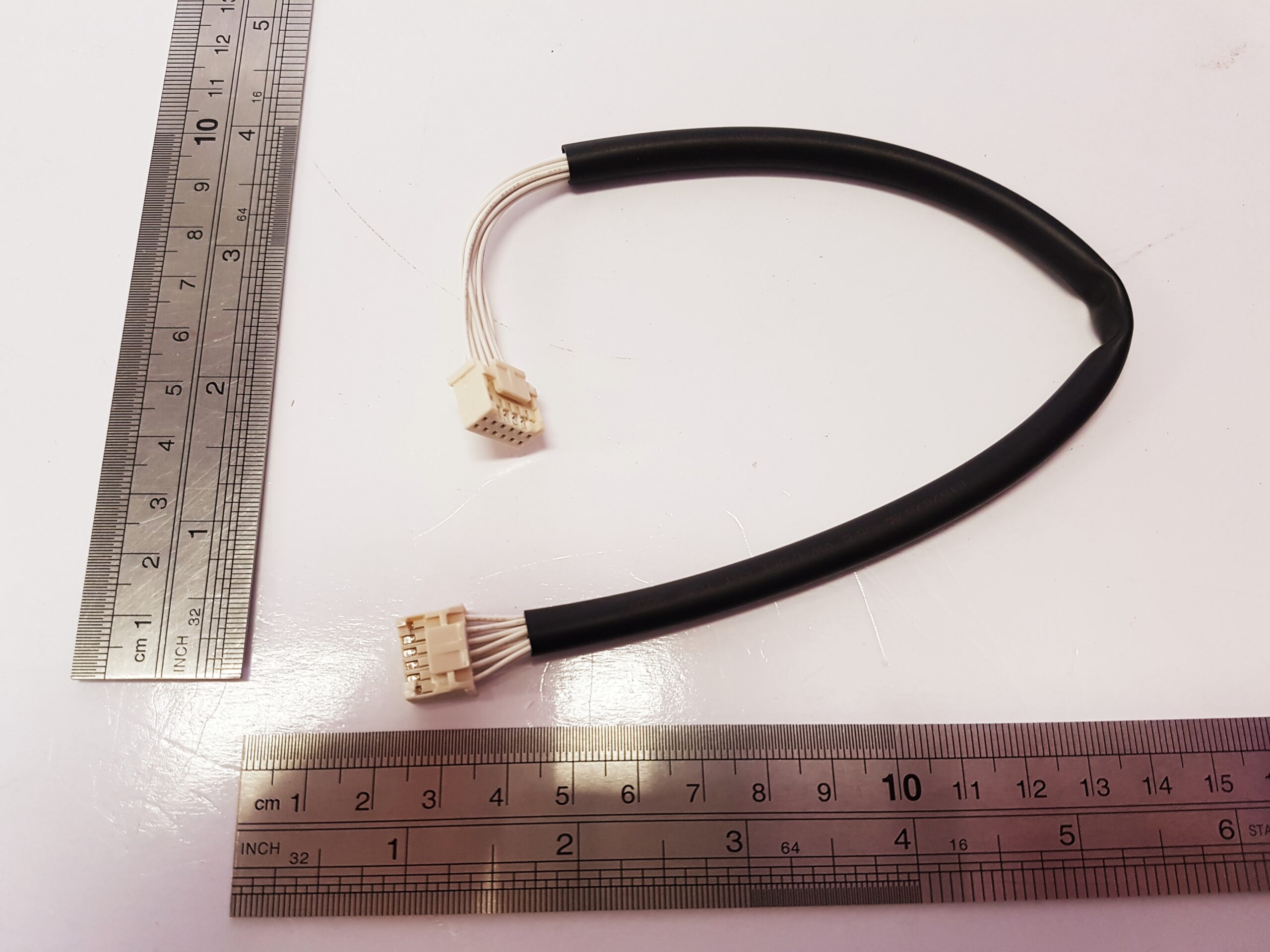

[10] In Stock

PJG504A024H

WIRING (PWB)

Notes: CNW2 PWB- CNW1 PWB Show Image

[11] In Stock

PJG142A031

LID,CONTROL BOX

[12] In Stock

PJA505A251A

PWB ASSY(MOTOR)

Notes: ONLY FOR SUPPLY PARTS

[12-15] Contact

PJG501A015

CONTROL UNIT(DRIVE

Contact

Notes: !, NOT AVAILABLE

[13] In Stock

PJG504A015

WIRING(CNM)

Notes: CNM1 PWB- CNM PWB Show Image

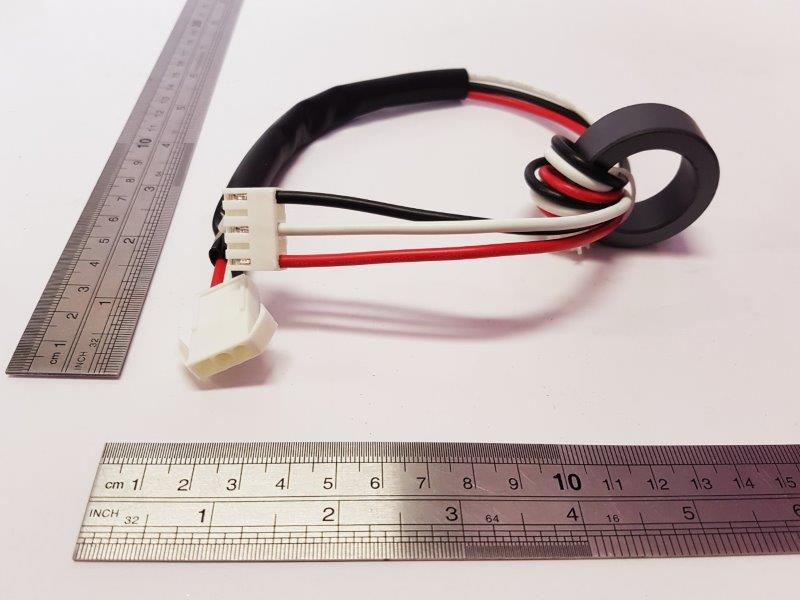

[14] In Stock

PJG504A016

WIRING(FM)

Notes: CNFM2- CNFM PWB Show Image

[15] Contact

PJG142A034

LID ASSY(DRIVER)

Contact

[16] In Stock

SSA554B115

REACTOR

[17] Contact

PJG011G021

LABEL,WIRING

Contact

Notes: !

[18] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[19] In Stock

SSA423A101A

HOSE,DRAIN

Notes: SEE C: CONTROL & PARTS SET

[19-21] In Stock

PJF008A001BG

PARTS SET

Notes: DRAIN HOSE, CLAMP & INSULATION

[20] In Stock

V300Y42

HOSE CLAMP

Show Image

[21] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[22] Contact

PJG011F057AS

Contact

Notes: !
