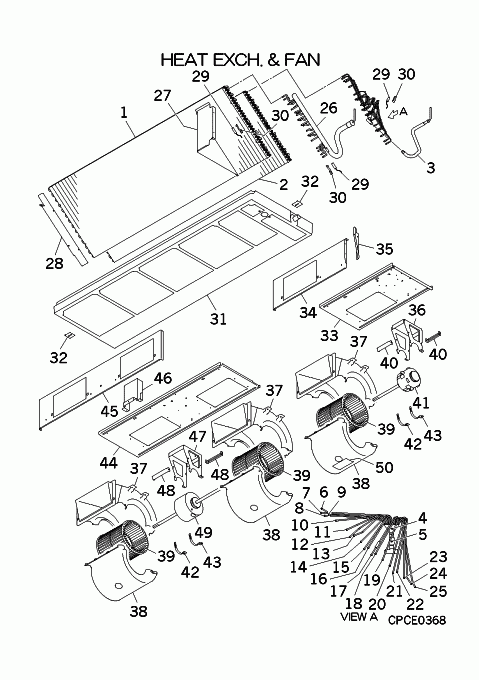

FDUA200VG/1 HEAT EXCH. AND FAN

FDUA200VG/1 HEAT EXCH. AND FAN

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJG311A005 HEAT EXCH AIR Contact   Contact
  • [1-30] PJG301A008A HEAT EXCH ASSY AIR In Stock
  • [2] PJG311A005A HEAT EXCH AIR Contact   Contact
  • [3] PJG304A006A PIPING ASSY Contact   Contact
  • [4] SSA315A306W DISTRIBUTOR Contact   Contact
  • [4-25] PJG315A017 DISTRIBUTOR ASSY Contact   Contact
  • [5] SSA357A051 STRAINER In Stock Show Image
  • [6] PJG315B007 CAPILLARY Contact Notes: !D3.0XD4.0 L360   Contact
  • [7] PJG315B007A CAPILLARY Contact Notes: !D3.0XD4.0 L340   Contact
  • [8] PJG315B007B CAPILLARY Contact Notes: !D3.0XD4.0 L320   Contact
  • [9] PJG315B007C CAPILLARY Contact Notes: !D3.0XD4.0 L280   Contact
  • [10] PJG315B007D CAPILLARY Contact Notes: !D3.0XD4.0 L260   Contact
  • [11] PJG315B007F CAPILLARY Contact Notes: !D2.6XD4.0 L240   Contact
  • [12] PJG315B007G CAPILLARY Contact Notes: !D2.0XD4.0 L240   Contact
  • [13] PJG315B007H CAPILLARY Contact Notes: !D2.6XD4.0 L220   Contact
  • [14] PJG315B007J CAPILLARY Contact Notes: !D3.0XD4.0 L220   Contact
  • [15] PJG315B007K CAPILLARY Contact Notes: !D2.4XD4.0 L220   Contact
  • [16] PJG315B007L CAPILLARY Contact Notes: !D2.2XD4.0 L220   Contact
  • [17] PJG315B007M CAPILLARY Contact Notes: !D2.0XD4.0 L240   Contact
  • [18] PJG315B007N CAPILLARY Contact Notes: !D2.2XD4.0 L240   Contact
  • [19] PJG315B007P CAPILLARY Contact Notes: !D2.8XD4.0 L240   Contact
  • [20] PJG315B007R CAPILLARY Contact Notes: !D2.6XD4.0 L260   Contact
  • [21] PJG315B007S CAPILLARY Contact Notes: !D2.2XD4.0 L300   Contact
  • [22] PJG315B007T CAPILLARY Contact Notes: !D2.2XD4.0 L300   Contact
  • [23] PJG315B007V CAPILLARY Contact Notes: !D2.4XD4.0 L320   Contact
  • [24] PJG315B007W CAPILLARY Contact Notes: !D2.0XD4.0 L360   Contact
  • [25] PJG315B007Y CAPILLARY Contact Notes: !D1.8XD4.0 L360   Contact
  • [26] PJG315D011 HEADER ASSY,GAS Contact   Contact
  • [27] PJG141A009 PLATE,BAFFLE(R) Contact   Contact
  • [28] PJG141A011 PLATE ASSY,BAFFLE Contact   Contact
  • [29] PJF551A002H SENSOR ASSY(TEMP) In Stock Notes: LENGTH 68.5CM, THI-R1,2,3 Show Image
  • [30] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [31] PJG454A007A PAN ASSY, DRAIN In Stock
  • [32] PJG116A009 BRACKET In Stock Show Image
  • [33] PJG119A062 PLATE(BASE,FAN) Contact Notes: RIGHT   Contact
  • [34] PJG119A063 PLATE,FAN Contact Notes: RIGHT   Contact
  • [35] PJG119A020 PLATE(FAN) In Stock Notes: RIGHT Show Image
  • [36] PJG116A012A BRACKET(MOTOR) Contact Notes: RIGHT   Contact
  • [37] PJG433B006 CASING(U) In Stock
  • [38] PJG433B004 CASING(L) In Stock
  • [39] SSA431D094 IMPELLER In Stock Notes: FAN BARREL
  • [40] PJG119A002 PLATE Contact Notes: RIGHT   Contact
  • [41] SSA512T142Z MOTOR,DC In Stock Substitute: SSA512T142A Notes: SINGLE STAFT, RIGHT
  • [42] PFA116A207G BRACKET In Stock Substitute: PJG116A063 Notes: LEFT Show Image
  • [43] PFA116A207H BRACKET In Stock Substitute: PJG116A063A Notes: RIGHT Show Image
  • [44] PJG119A062A PLATE(BASE,FAN) Contact Notes: LEFT   Contact
  • [45] PJG119A063A PLATE,FAN Contact Notes: LEFT   Contact
  • [46] PJG142A027 BOX ASSY(DRIVER) Contact Notes: LEFT   Contact
  • [47] PJG116A012 BRACKET(MOTOR) Contact Notes: LEFT   Contact
  • [48] PJG119A002A PLATE Contact Notes: LEFT   Contact
  • [49] SSA512T123A MOTOR,DC In Stock Notes: TWIN SHAFT - PLUG HAS 3 WIRES
  • [50] PSA011H046 LABEL,NOTICE Contact   Contact
SKU: FDUA200VG/1 HEAT EXCH. AND FAN Category:
