FDUA200VG/1 CONTROL AND PARTS SET

FDUA200VG/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

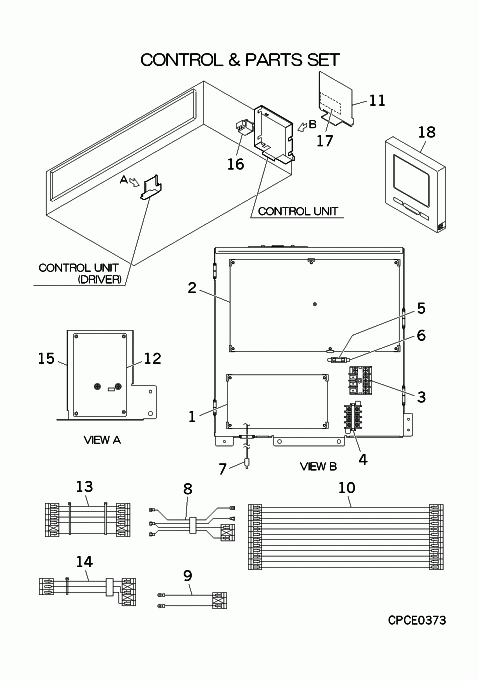

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A228DK
PWB ASSY (CONTROL)
Notes: Control PCB. CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image
PJA505A228DK
[1-10] Contact
PJG501A013CS
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PJA505A248C
PWB ASSY(POWER)
[3] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
SSA564A149AL
FUSE(CURRENT)
Notes: 10A, F1 10A Show Image
SSA564A149AL
[6] In Stock
SSA564B076
HOLDER,FUSE
Show Image
SSA564B076
[7] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[8] Contact
PJG504A017
HARNESS ASSY
Contact
Notes: TB1 1,TB1 2,TB1 3- FH,T2,CNW3
[9] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[10] Contact
PJG504A001H
WIRING(PWB)
Contact
Notes: CNW2 PWB- CNW1 PWB
[11] Contact
PJG142A031
LID,CONTROL BOX
Contact
[12] Out of Stock
PJA505A251A
PWB ASSY(MOTOR)
[12-15] Contact
PJG501A015
CONTROL UNIT(DRIVE
Contact
Notes: NOT AVAILABLE
[13] Contact
PJG504A015
WIRING(CNM)
Contact
Notes: CNM1PWB- CNM PWB
[14] Contact
PJG504A016
WIRING(FM)
Contact
Notes: CNFM2- CNFMPWB
[15] Contact
PJG142A034
LID ASSY(DRIVER)
Contact
[16] In Stock
SSA554B115
REACTOR
[17] Contact
PJG011G012
LABEL,WIRING
Contact
[18] Contact
PJZ502A024AB
Advanced Wired Remote
Contact
Notes: RC-EX1A, SALES ITEM - ECO TOUCH
[19] Contact
PJG011F020AS
LABEL,MODEL NAME
Contact
SKU: FDUA200VG/1 CONTROL AND PARTS SET Category:
