FDUA200VG/1 CABINET ASSY

Name: FDUA200VG/1 CABINET ASSY
SKU: FDUA200VG/1 CABINET ASSY
Availability: InStock

FDUA200VG/1 CABINET ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

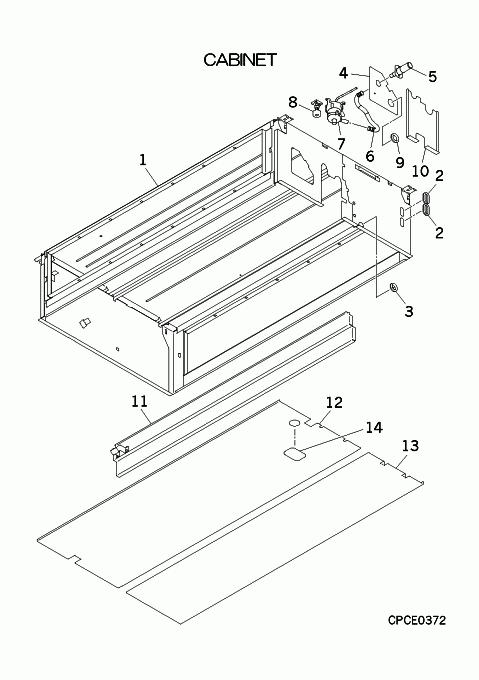

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

PJG100A004

CABINET ASSY

Contact

[2] In Stock

SSA947B120

GROMMET

Notes: LENGTH 5.5CM Show Image

[3] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[4] In Stock

PJG132A016

LID(PUMP)

Show Image

[4-9] In Stock

PJG451A004A

PUMP ASSY DRAIN

Notes: inc Drain Pump, Drain Hose, Float Switch, Bracket & Grommet

[5] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[6] In Stock

SSA423A110

HOSE,DRAIN

Show Image

[7] In Stock

SSA451A012

DRAIN PUMP

Notes: White Plug with Red & White Cable (CNR - DM (DRAIN MOTOR)) plugs in CNR port on control pcb Show Image

[8] In Stock

SSA536A030

FLOAT SWITCH

Notes: FS, LENGTH 107.5CM Show Image

[9] In Stock

S751W30

GROMMET

Notes: D35 Show Image

[10] In Stock

PJG132A017

LID ASSY(SOCKET)

[11] Contact

PJG115A016

STIFFENER ASSY

Contact

[12] In Stock

PJG111A013

PLATE ASSY,BOTTOM(

[13] In Stock

PJG111A015

PLATE ASSY,BOTTOM(

[14] In Stock

PJG142A006

LID ASSY(DRAIN)

Notes: LENGTH 10CM Show Image

SKU: FDUA200VG/1 CABINET ASSY Category: Uncategorised
