FDUA160VH/B HEAT EXCH. AND FAN

FDUA160VH/B HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

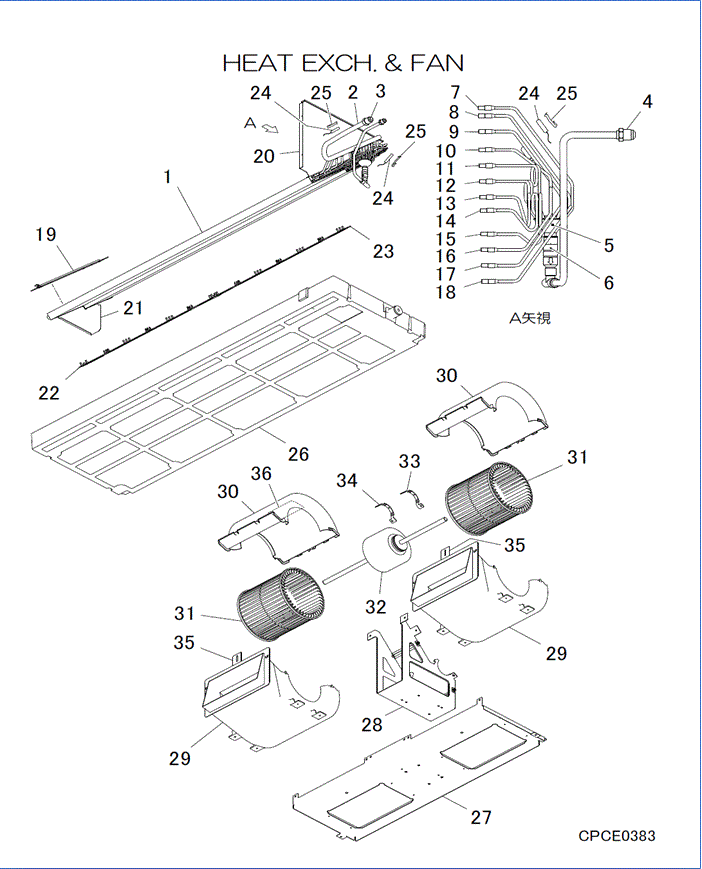

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-25] In Stock
PJG301A018
HEAT EXCH ASSY(AIR)
Notes: Indoor Heat Exchanger Coil assembly
[2-3] Contact
PJG315D015
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F092F
UNION,SOLDER
Contact
[4] In Stock
SSA323F091
UNION(SLD)
[4-18] Contact
PJG315A020
DISTRIBUTOR ASSY
Contact
[5] Contact
SSA315A314AL
DISTRIBUTOR
Contact
[5-18] Contact
PJG315A021
DISTRIBUTOR ASSY
Contact
[6] Contact
SSA357A051G
STRAINER
Contact
[7] Contact
PJG315B009
CAPILLARY
Contact
Notes: D2.2xD4.0 L300
[8] Contact
PJG315B009A
CAPILLARY
Contact
Notes: D2.2xD4.0 L260
[9] Contact
PJG315B009B
CAPILLARY
Contact
Notes: D2.4xD4.0 L220
[10] Contact
PJG315B009C
CAPILLARY
Contact
Notes: D2.4xD4.0 L200
[11] Contact
PJG315B009D
CAPILLARY
Contact
Notes: D2.4xD4.0 L260
[12] Contact
PJG315B009F
CAPILLARY
Contact
Notes: D2.4xD4.0 L220
[13] Contact
PJG315B009G
CAPILLARY
Contact
Notes: D2.0xD4.0 L220
[14] Contact
PJG315B009N
CAPILLARY
Contact
Notes: D3.0xD4.0 L200
[15] Contact
PJG315B009J
CAPILLARY
Contact
Notes: D2.0xD4.0 L200
[16] Contact
PJG315B009K
CAPILLARY
Contact
Notes: D2.0xD4.0 L220
[17] Contact
PJG315B009L
CAPILLARY
Contact
Notes: D2.2xD4.0 L200
[18] Contact
PJG315B009M
CAPILLARY
Contact
Notes: D2.6xD4.0 L240
[19] Contact
PJG141A014
PLATE,BAFFLE(L)
Contact
[20] Contact
PJG141A015
PLATE ASSY,BAFFLE
Contact
[21] Contact
PJG141A017A
PLATE,BAFFLE
Contact
[22] Contact
PJG129A002
PLATE,BAFFLE
Contact
[23] Contact
PJG129A002A
PLATE,BAFFLE
Contact
[24] In Stock
PJF551A002R
SENSOR ASSY (TEMP)
Notes: THI-R1,2,3, LENGTH 98CM Show Image
PJF551A002R
[25] In Stock
PSA941F001
SPRING LEAF
Substitute: RKJ941F001 Notes: FOR THI-R, 1pc ONLY Show Image
PSA941F001
[26] In Stock
PJG454A009A
PAN ASSY,DRAIN
[29] In Stock
PJG433B006
CASING(U)
[30] In Stock
PJG433B004
CASING(L)
[31] In Stock
SSA431D094
IMPELLER
Notes: FAN BARREL
[32] In Stock
SSA512T123D
MOTOR, DC
[33] In Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[34] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[35] In Stock
PJG116A009
BRACKET
PJG116A009
[36] Contact
PSA011H046
LABEL,NOTICE
Contact
