FDUA160VH/A CABINET

FDUA160VH/A CABINET

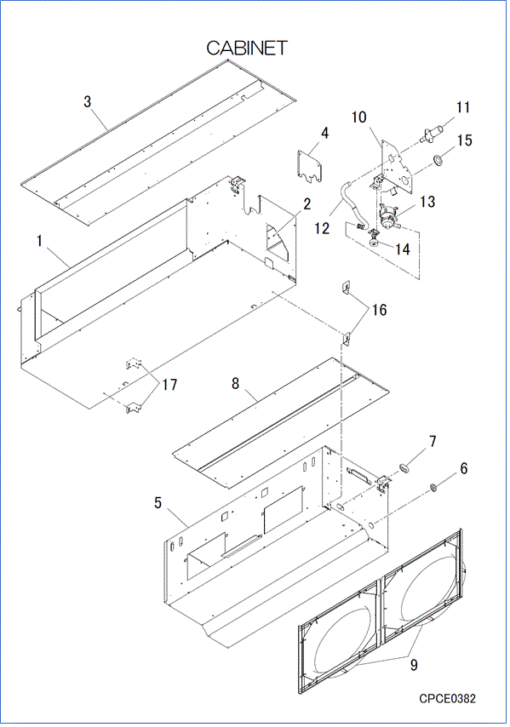

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[3] Contact
PJG124A013
PANEL ASSY,TOP(A)
Contact
[4] Contact
PJG132A019
LID ASSY(PIPE)
Contact
[6] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[7] In Stock
SSA947B120
GROMMET¿
Notes: LENGTH 5.5CM Show Image
SSA947B120
[8] Contact
PJG124A014
PANEL ASSY,TOP(B)
Contact
[9] In Stock
PJG438A012
JOINT,DUCT(IN)
[10] In Stock
PJG132A016
LID(PUMP)
PJG132A016
[10-15] In Stock
PJG451A004B
PUMP ASSY,DRAIN
[11] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[12] In Stock
SSA423A110
HOSE,DRAIN
SSA423A110
[13] In Stock
SSA451A012
PUMP, DRAIN
SSA451A012
[14] In Stock
SSA536A030
FLOAT SWITCH
Notes: FS, LENGTH 107.5CM Show Image
SSA536A030
[15] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[16] Contact
PJG116A069
BRACKET(SEPARATE)
Contact
[17] Contact
PJG116A069A
BRACKET(SEPARATE)
Contact
[18] In Stock
SSA423A101C
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS SET, LENGTH 26CM Show Image
SSA423A101C
[19] In Stock
V300Y42
HOSE CLAMP
Notes: SEE C: CONTROL & PARTS SET
