FDUA160VH/1 HEAT EXCH. AND FAN

Awaiting product image

FDUA160VH/1 HEAT EXCH. AND FAN

Available Parts

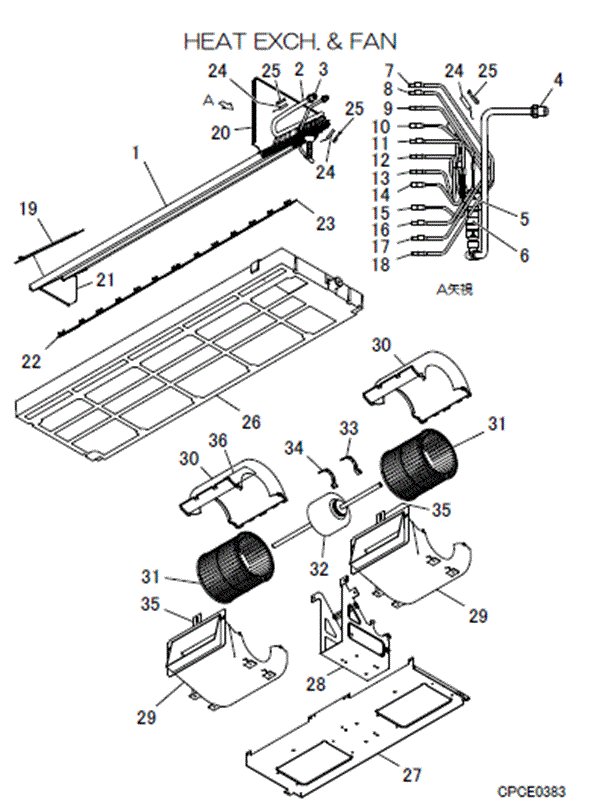

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-25] PJG301A018 HEAT EXCH ASSY(AIR) Contact   Contact
  • [2-3] PJG315D015 HEADER ASSY,GAS Contact Notes: ?   Contact
  • [3] SSA323F092F UNION,SOLDER Contact   Contact
  • [4] SSA323F088 UNION(SLD) In Stock
  • [4-18] PJG315A020 DISTRIBUTOR ASSY Contact   Contact
  • [5] SSA315A314AL DISTRIBUTOR Contact Notes: ?   Contact
  • [5-18] PJG315A021 DISTRIBUTOR ASSY Contact   Contact
  • [6] SSA357A051G STRAINER Contact   Contact
  • [7] PJG315B009 CAPILLARY Contact Notes: ?f2.2xf4.0 L300   Contact
  • [8] PJG315B009A CAPILLARY Contact Notes: ?f2.2xf4.0 L260   Contact
  • [9] PJG315B009B CAPILLARY Contact Notes: ?f2.4xf4.0 L220   Contact
  • [10] PJG315B009C CAPILLARY Contact Notes: ?f2.4xf4.0 L200   Contact
  • [11] PJG315B009D CAPILLARY Contact Notes: ?f2.4xf4.0 L260   Contact
  • [12] PJG315B009F CAPILLARY Contact Notes: ?f2.4xf4.0 L220   Contact
  • [13] PJG315B009G CAPILLARY Contact Notes: ?f2.0xf4.0 L220   Contact
  • [14] PJG315B009N CAPILLARY Contact Notes: ?f3.0xf4.0 L200   Contact
  • [15] PJG315B009J CAPILLARY Contact Notes: ?f2.0xf4.0 L200   Contact
  • [16] PJG315B009K CAPILLARY Contact Notes: ?f2.0xf4.0 L220   Contact
  • [17] PJG315B009L CAPILLARY Contact Notes: ?f2.2xf4.0 L200   Contact
  • [18] PJG315B009M CAPILLARY Contact Notes: ?f2.6xf4.0 L240   Contact
  • [19] PJG141A014 PLATE,BAFFLE(L) Contact   Contact
  • [20] PJG141A015 PLATE ASSY,BAFFLE Contact   Contact
  • [21] PJG141A017A PLATE,BAFFLE Contact   Contact
  • [22] PJG129A002 PLATE,BAFFLE Contact   Contact
  • [23] PJG129A002A PLATE,BAFFLE Contact   Contact
  • [24] PJF551A002R SENSOR ASSY (TEMP) In Stock Notes: THI-R1,2,3
  • [25] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [26] PJG454A009A PAN ASSY,DRAIN Contact   Contact
  • [27] PJG119A078A PLATE(BASE,FAN) Contact   Contact
  • [28] PJG116A067 BRACKET ASSY(MOTOR) Contact   Contact
  • [29] PJG433B006 CASING(U) In Stock
  • [30] PJG433B004 CASING(L) In Stock
  • [31] SSA431D094 IMPELLER In Stock Notes: FAN BARREL
  • [32] SSA512T123B MOTOR DC In Stock
  • [33] PJG116A063 BRACKET(MOTOR) In Stock Notes: LEFT Show Image
  • [34] PJG116A063A BRACKET(MOTOR) In Stock Notes: RIGHT Show Image
  • [35] PJG116A009 BRACKET In Stock Show Image
  • [36] PSA011H046 LABEL,NOTICE Contact   Contact
SKU: FDUA160VH/1 HEAT EXCH. AND FAN
