FDUA160VH/1 CONTROL AND PARTS SET

FDUA160VH/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

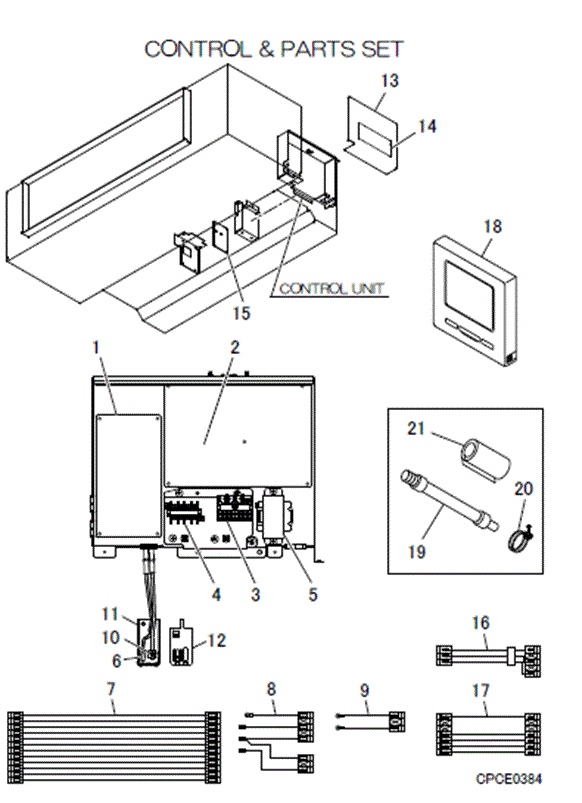

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A228DY
PWB ASSY (CONTROL)
Notes: ONLY FOR SUPPLAY PARTS, CONFIRM SERVICE CODE-MANY PARTS ENDING 228
[1-12] Contact
PJG501A025BR
CONTROL UNIT
Contact
Notes: ?, NOT AVAILABLE
[2] In Stock
PJA505A235L
PWB ASSY POWER
Notes: ONLY FOR SUPPLAY PARTS, NIL STOCK - ETA IS AROUND END OF APRIL Show Image
PJA505A235L
[3] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Substitute: SSA561B725 Notes: TB2 Show Image
SSA561B720A
[5] In Stock
SSA554B109
REACTOR
SSA554B109
[6] In Stock
PSA551A001HA
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001HA
[7] In Stock
PJG504A001B
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2 PWB- CNW1 PWB/ LENGTH 16.5CM (12 white wires) Show Image
PJG504A001B
[8] In Stock
PJF504A036A
WIRING(TB,POWER)
Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB Show Image
PJF504A036A
[9] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[10] In Stock
SSA551B017H
SENSOR HUMIDITY
SSA551B017H
[11] Contact
PJF129A509
BASE,HOLDER
Contact
[12] Contact
PJF129A510
COVER,HOLDER
Contact
[13] Contact
PJG142A037A
LID,CONTROL BOX
Contact
[14] Contact
PJG011G020B
LABEL,WIRING
Contact
Notes: ?
[15] In Stock
PJA505A236A
PWB ASSY MOTOR
Notes: ONLY FOR SUPPLAY PARTS Show Image
PJA505A236A
[15-17] Contact
PJG501A026
CONTROL UNIT(DRIVER)
Contact
Notes: NOT AVAILABLE
[16] In Stock
PJG504A008B
WIRING(FM)
Notes: CNFM2- CNFM
[17] In Stock
PJG504A008C
WIRING(FM)
Notes: CNM2- CNM
[18] Contact
PJZ502A031GC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: ?RC-EXZ3A, ECO TOUCH - SALES ITEM
[19] In Stock
SSA423A101C
HOSE,DRAIN
Notes: LENGTH 26CM Show Image
SSA423A101C
[19-21] Out of Stock
PJF008A001AW
PARTS SET
Notes: Includes Drain Hose, Hose Clamp & Insulation
[20] In Stock
V300Y42
HOSE CLAMP
[21] In Stock
SSA153B016BA
INSULATION,PIPE
SSA153B016BA
[22] Out of Stock
PJG006A005
INSTALLATION SET
Notes: FOR ZONE CONTROL, WIRING HARNESS FOR ZONE CONTROLLER - CNJ to TERMINAL BLOCK Show Image
PJG006A005
[23] Contact
PJG011F087R
LABEL,MODEL NAME
Contact
Notes: ?
SKU: FDUA160VH/1 CONTROL AND PARTS SET Category:
