FDUA160VF/1 CONTROL AND PARTS SET

FDUA160VF/1 CONTROL AND PARTS SET

Available Parts

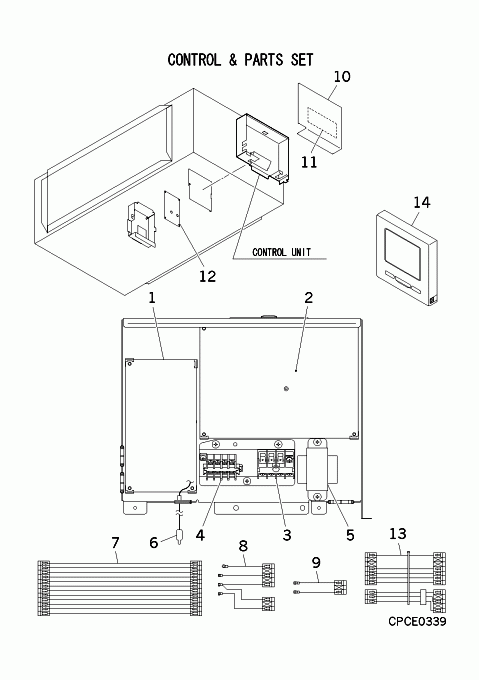

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A228DJ PWB ASSY (CONTROL) In Stock Notes: (CONTROL) LEFT OF TERMINAL BLOCK Show Image
  • [1-9] PJG501A003AT CONTROL UNIT Contact   Contact
  • [2] PJA505A235 PWB ASSY(POWER) In Stock Notes: (POWER) ABOVE TERMINAL BLOCK, DOES NOT PLUG INTO FAN MOTOR BUT POWERS PWB ASSY(MOTOR). PWB ASSY(MOTOR) PLUGS DIRECTLY INTO MOTOR Show Image
  • [3] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [4] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [5] SSA554B109 REACTOR In Stock Show Image
  • [6] PSA551A001CG SENSOR ASSY In Stock Notes: THI-A, THI-A Show Image
  • [7] PJG504A001B WIRING(PWB) In Stock Notes: CNW2 PWB- CNW1 PWB/ LENGTH 16.5CM (12 WHITE WIRES), CNW2 PWB- CNW1 PWB Show Image
  • [8] PJF504A036A WIRING(TB,POWER) In Stock Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB, CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB Show Image
  • [9] PJF504A006K WIRING(TB,XY) In Stock Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB Show Image
  • [10] PJG142A010 LID,CONTROL BOX Contact   Contact
  • [11] PJG011G003 LABEL,WIRING Contact   Contact
  • [12] PJA505A236 PWB ASSY(MOTOR) In Stock Notes: COMES WITH SSA971F044 (GREASE) INSIDE BOX Show Image
  • [12-13] PJG501A004 CONTROL UNIT(DRIVE Contact   Contact
  • [13] PJG504A008 WIRING(FM) In Stock Notes: CNM2,CNFM2- CNM,CNFM, CNM2,CNFM2- CNM,CNFM Show Image
  • [14] PJZ502A024AB ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX1A   Contact
  • [15] PJG011F004R LABEL,MODEL NAME Contact   Contact
SKU: FDUA160VF/1 CONTROL AND PARTS SET Category:
