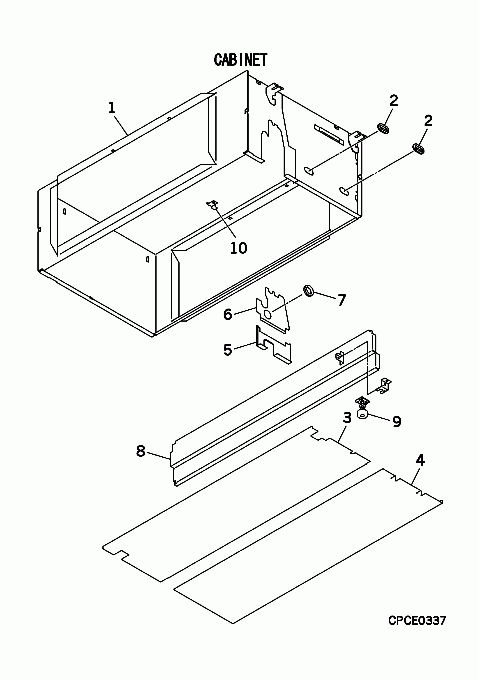

FDUA160VF/1 CABINET ASSY

FDUA160VF/1 CABINET ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] In Stock
PJG100A003
CABINET ASSY
[2] In Stock
SSA947B120
GROMMET
Notes: LENGTH 5.5CM Show Image
SSA947B120
[3] In Stock
PJG111A007
PLATE ASSY,BOTTOM(
[4] Contact
PJG111A009
PLATE ASSY,BOTTOM(
Contact
[5] Contact
PJG132A007
LID ASSY
Contact
[6-7] Contact
PJG132A009
LID ASSY(PIPE)
Contact
[7] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[8] Contact
PJG115A006
STIFFENER ASSY
Contact
[9] In Stock
SSA536A030
FLOAT SWITCH
Notes: FS, LENGTH 107.5CM Show Image
SSA536A030
[10] Contact
PJG116A015
BRACKET(STOPPER)
Contact
[11] In Stock
SSA451A012
PUMP, DRAIN
Show Image
SSA451A012
