FDUA140VG/1 CABINET

FDUA140VG/1 CABINET

FDUA140VG/1 CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

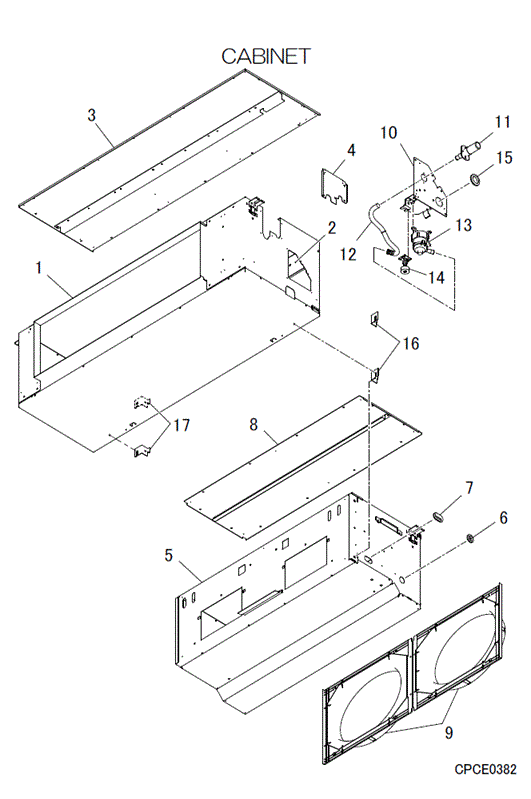

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact
PJG100A005
CABINET ASSY(A)
Contact
Notes: !
[2] Contact
PJG115A020
STIFFENER ASSY(TOP)
Contact
[3] Contact
PJG124A013
PANEL ASSY,TOP(A)
Contact
[4] Contact
PJG132A019
LID ASSY(PIPE)
Contact
[5-9] In Stock
PJG100A006
CABINET ASSY(B)
Notes: !
[6] In Stock
S751W25X
GROMMET
Notes: !30 Show Image
S751W25X
[7] In Stock
SSA947B120
GROMMET
Notes: LENGTH 5.5CM Show Image
SSA947B120
[8] Contact
PJG124A014
PANEL ASSY,TOP(B)
Contact
[9] In Stock
PJG438A012
JOINT,DUCT(IN)
[10] In Stock
PJG132A016
LID(PUMP)
Show Image
PJG132A016
[10-15] In Stock
PJG451A004B
PUMP ASSY,DRAIN
[11] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[12] In Stock
SSA423A110
HOSE,DRAIN
Show Image
SSA423A110
[13] In Stock
SSA451A012
DRAIN PUMP
Notes: White Plug with Red & White Cable (CNR - DM (DRAIN MOTOR)) plugs in CNR port on control pcb Show Image
SSA451A012
[14] In Stock
SSA536A030
FLOAT SWITCH
Notes: FS, LENGTH 107.5CM Show Image
SSA536A030
[15] In Stock
S751W30
GROMMET
Notes: !35 Show Image
S751W30
[16] In Stock
PJG116A069
BRACKET(SEPARATE)
[17] In Stock
PJG116A069A
BRACKET(SEPARATE)
[18] In Stock
SSA423A101C
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS, LENGTH 26CM Show Image
SSA423A101C

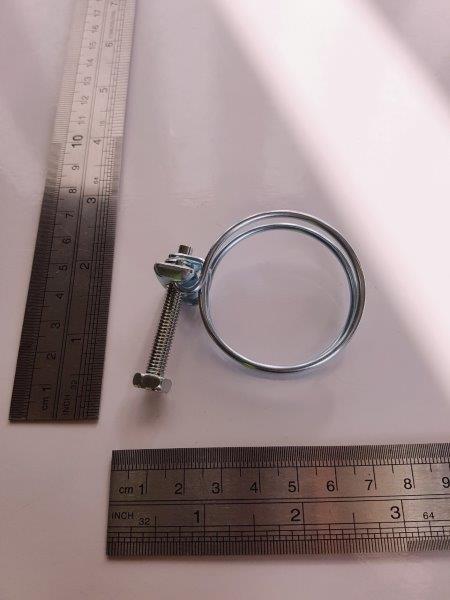

[19] In Stock
V300Y42
HOSE CLAMP
Notes: SEE C: CONTROL & PARTS Show Image
V300Y42
