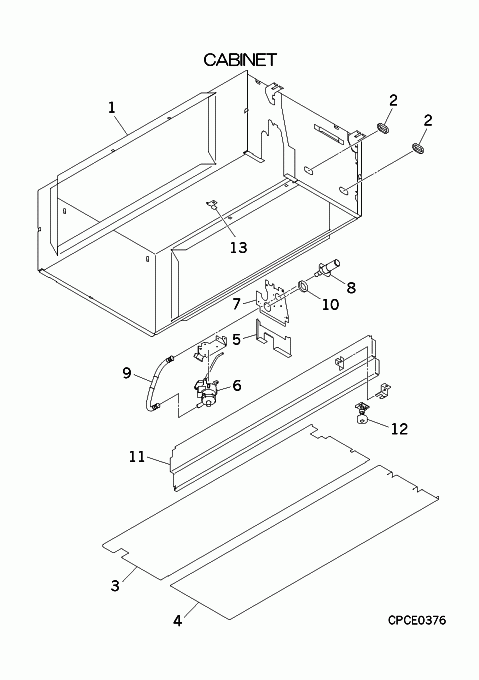

FDUA140VF/G CABINET

FDUA140VF/G CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] In Stock
PJG100A003
CABINET ASSY
Notes: !
[2] In Stock
SSA947B120
GROMMET
Notes: LENGTH 5.5CM Show Image
SSA947B120
[3] In Stock
PJG111A007
PLATE ASSY,BOTTOM(
[4] Contact
PJG111A009
PLATE ASSY,BOTTOM(
Contact
[5] Contact
PJG132A007
LID ASSY
Contact
[6] In Stock
SSA451A012
PUMP, DRAIN
Show Image
SSA451A012
[6-10] In Stock
PJG451A003A
PUMP ASSY,DRAIN
[7] Contact
PJG132A010A
LID(PIPE)
Contact
[8] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[9] In Stock
SSA423A110
HOSE,DRAIN
Show Image
SSA423A110
[10] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[11] Contact
PJG115A006
STIFFENER ASSY
Contact
[12] In Stock
SSA536A030
FLOAT SWITCH
Notes: FS, LENGTH 107.5CM Show Image
SSA536A030
[13] Contact
PJG116A015
BRACKET(STOPPER)
Contact
[14] In Stock
SSA423A101C
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS SET, LENGTH 26CM Show Image
SSA423A101C
[15] In Stock
V300Y42
HOSE CLAMP
Notes: SEE C: CONTROL & PARTS SET
