Parts List
Key:
Instock.
Nilstock.
Contact MRE.

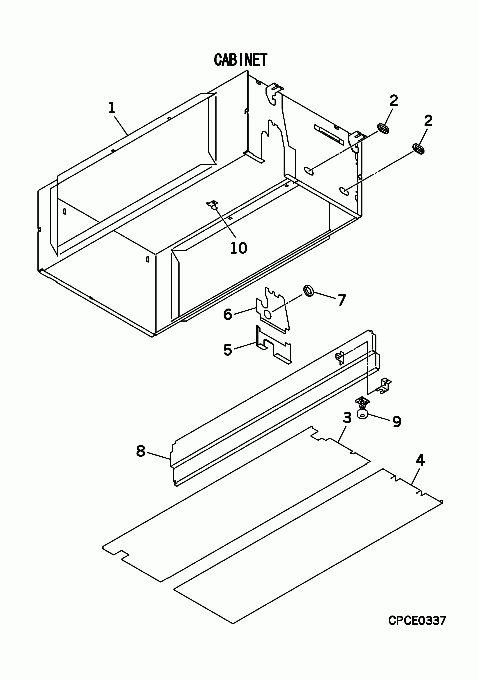

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-2]
In Stock
PJG100A003
CABINET ASSY
[2]
In Stock
SSA947B120
GROMMET
[3]
In Stock
PJG111A007
PLATE ASSY,BOTTOM(
[4]
In Stock
PJG111A009
PLATE ASSY,BOTTOM(
[5]
Out of Stock
PJG132A007
LID ASSY
[6-7]
Contact
PJG132A009
LID ASSY(PIPE)
Contact
[7]
In Stock
S751W30
GROMMET
[8]
Contact
PJG115A006
STIFFENER ASSY
Contact
[9]
In Stock
SSA536A030
FLOAT SWITCH
[10]
In Stock
PJG116A015
BRACKET(STOPPER)
[11]
In Stock
SSA451A012
DRAIN PUMP
Notes: White Plug with Red & White Cable (CNR - DM (DRAIN MOTOR)) plugs in CNR port on control pcb Show Image
