FDUA125VH/1 CONTROL AND PARTS SET

FDUA125VH/1 CONTROL AND PARTS SET

Available Parts

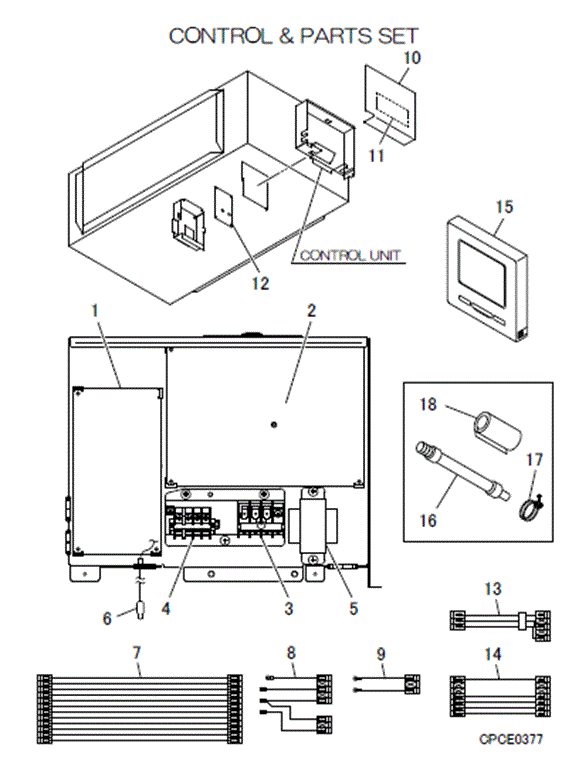

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A228DT PWB ASSY(CONTROL) Out of Stock Notes: ONLY FOR SUPPLY PARTS
  • [1-9] PJG501A017WP CONTROL UNIT Contact Notes: ?   Contact
  • [2] PJA505A235 PWB ASSY(POWER) In Stock Notes: (POWER) ABOVE TERMINAL BLOCK, ONLY FOR SUPPLY PARTS Show Image
  • [3] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [4] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [5] SSA554B109 REACTOR In Stock Show Image
  • [6] PSA551A001CG SENSOR ASSY In Stock Notes: THI-A, THI-A Show Image
  • [7] PJG504A001B WIRING(PWB) In Stock Notes: CNW2 PWB- CNW1 PWB/ LENGTH 16.5CM (12 WHITE WIRES), CNW2 PWB- CNW1 PWB
  • [8] PJF504A036A WIRING(TB,POWER) In Stock Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB, CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB Show Image
  • [9] PJF504A006K WIRING(TB,XY) In Stock Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB Show Image
  • [10] PJG142A015A LID ASSY,CONTROL B In Stock
  • [11] PJG011G020B LABEL,WIRING Contact Notes: ?   Contact
  • [12] PJA505A236 PWB ASSY(MOTOR) In Stock Notes: COMES WITH SSA971F044 (GREASE) INSIDE BOX, ONLY FOR SUPPLY PARTS Show Image
  • [12-14] PJG501A004 CONTROL UNIT(DRIVE Contact   Contact
  • [13] PJG504A008 WIRING(FM) In Stock Notes: CNM2,CNFM2- CNM,CNFM, CNFM2- CNFM Show Image
  • [14] PJG504A008A WIRING(FM) In Stock Notes: CNM2- CNM/ LENGTH 60CM, CNM2- CNM
  • [15] PJZ502A031GC ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EXZ3A   Contact
  • [16] SSA423A101C HOSE,DRAIN In Stock Notes: LENGTH 26CM
  • [16-18] PJF008A001AW PARTS SET In Stock Notes: INCLUDES DRAIN HOSE, HOSE CLAMP AND INSULATION
  • [17] V300Y42 HOSE CLAMP Contact Substitute: V300Y42X001U   Contact
  • [18] SSA153B016BA INSULATION,PIPE In Stock Show Image
  • [19] PJG006A005 INSTALLATION SET In Stock Notes: WIRING HARNESS FOR ZONE CONTROLLER - CNJ TO TERMINAL BLOCK, FOR ZONE CONTROL Show Image
  • [20] PJG011F083N LABEL,MODEL NAME Contact Notes: ?   Contact
SKU: FDUA125VH/1 CONTROL AND PARTS SET Category:
