FDUA125VF/F CABINET

FDUA125VF/F CABINET

Available Parts

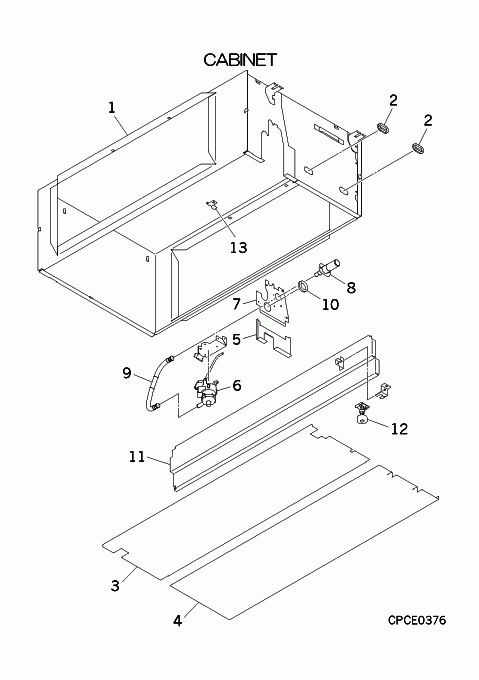

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-2] PJG100A003 CABINET ASSY In Stock Notes: !
  • [2] SSA947B120 GROMMET In Stock Notes: LENGTH 5.5CM
  • [3] PJG111A007 PLATE ASSY,BOTTOM( In Stock
  • [4] PJG111A009 PLATE ASSY,BOTTOM( Contact   Contact
  • [5] PJG132A007 LID ASSY Contact   Contact
  • [6] SSA451A012 PUMP, DRAIN In Stock Show Image
  • [6-10] PJG451A003A PUMP ASSY,DRAIN In Stock
  • [7] PJG132A010A LID(PIPE) Contact   Contact
  • [8] SSA422C088 SOCKET In Stock Notes: LENGTH 11.5CM
  • [9] SSA423A110 HOSE,DRAIN In Stock Show Image
  • [10] S751W30 GROMMET In Stock Notes: D35 Show Image
  • [11] PJG115A006 STIFFENER ASSY Contact   Contact
  • [12] SSA536A030 FLOAT SWITCH In Stock Notes: FS
  • [13] PJG116A015 BRACKET(STOPPER) Contact   Contact
  • [14] SSA423A101A HOSE,DRAIN In Stock Substitute: SSA423A101C Notes: SEE C: CONTROL AND PARTS SET, SEE C: CONTROL & PARTS SET
  • [15] V300Y42 HOSE CLAMP Contact Substitute: V300Y42X001U Notes: SEE C: CONTROL & PARTS SET   Contact
SKU: FDUA125VF/F CABINET Category:
