FDUA100VH/C CONTROL AND PARTS SET

Name: FDUA100VH/C CONTROL AND PARTS SET
SKU: FDUA100VH/C CONTROL AND PARTS SET
Availability: InStock

FDUA100VH/C CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

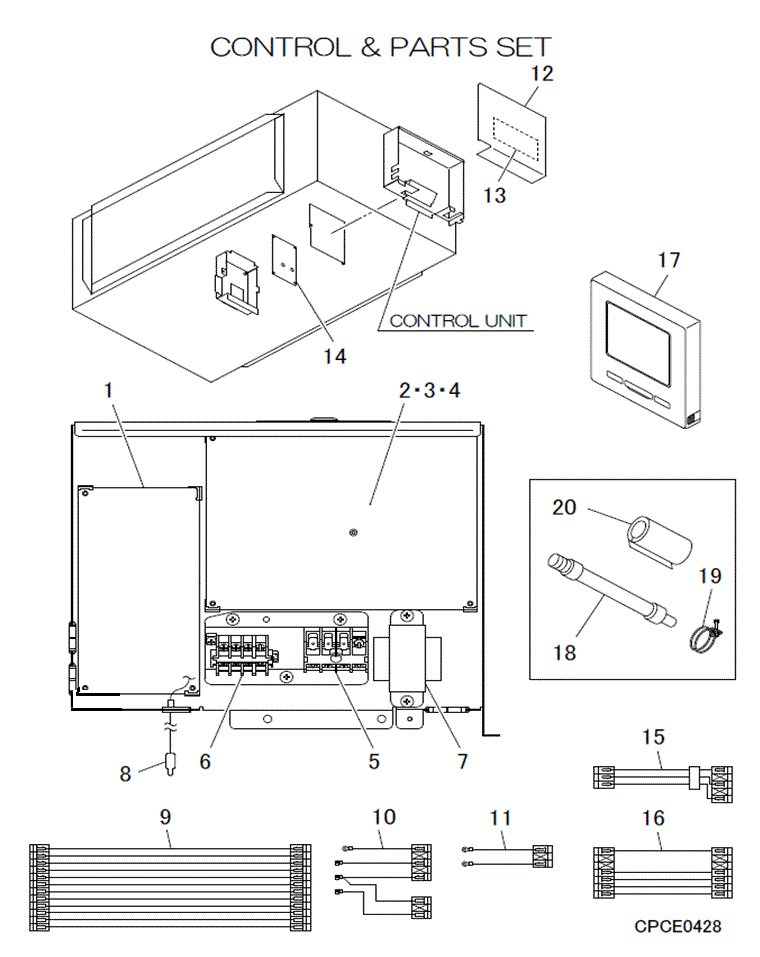

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228SC

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS

[1-11] Contact

PJG501A027BN

CONTROL UNIT

Contact

[2-4] In Stock

PJA505A235PA

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS Show Image

[3] In Stock

SSA564A149AJ

FUSE (CURRENT)

Notes: F1 6.3A

[4] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F4 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[5] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[6] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[7] In Stock

SSA554B109

REACTOR

Show Image

[8] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A, THI-A - RETURN AIR SENSOR Show Image

[9] In Stock

PJG504A024B

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB Show Image

[10] Contact

PJF504A036N

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB

[11] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[12] In Stock

PJG142A015A

LID ASSY,CONTROL B

[13] Contact

PJG011G020C

LABEL, WIRING

Contact

[14] In Stock

PJA505A236

PWB ASSY(MOTOR)

Notes: ONLY FOR SUPPLY PARTS, COMES WITH SSA971F044 (GREASE) INSIDE BOX Show Image

[14-15] Contact

PJG501A004

CONTROL UNIT(DRIVE

Contact

Notes: NOT AVAILABLE

[15] In Stock

PJG504A008

WIRING(FM)

Notes: CNFM2- CNFM, CNM2,CNFM2- CNM,CNFM Show Image

[16] In Stock

PJG504A008A

WIRING(FM)

Notes: CNM2- CNM, CNM2- CNM/ LENGTH 60CM Show Image

[17] Contact

PJZ502A031GC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EXZ3A, ECO TOUCH - SALES ITEM

[18] In Stock

PSA423A004B

HOSE ASSY,DRAIN

Show Image

[18-20] Out of Stock

PJF008A001CA

PARTS SET

[19] In Stock

V300Y32

HOSE CLAMP

[20] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[21] In Stock

PJG006A005B

INSTALLATION SET

Notes: FOR ZONE CONTROL, HAS PLUGS ON BOTH ENDS - suits many /C service codes

[22] Contact

PJG011F083AL

LABEL, MODEL NAME

Contact

SKU: FDUA100VH/C CONTROL AND PARTS SET Category: Uncategorised
