Parts List
Key:
Instock.
Nilstock.
Contact MRE.

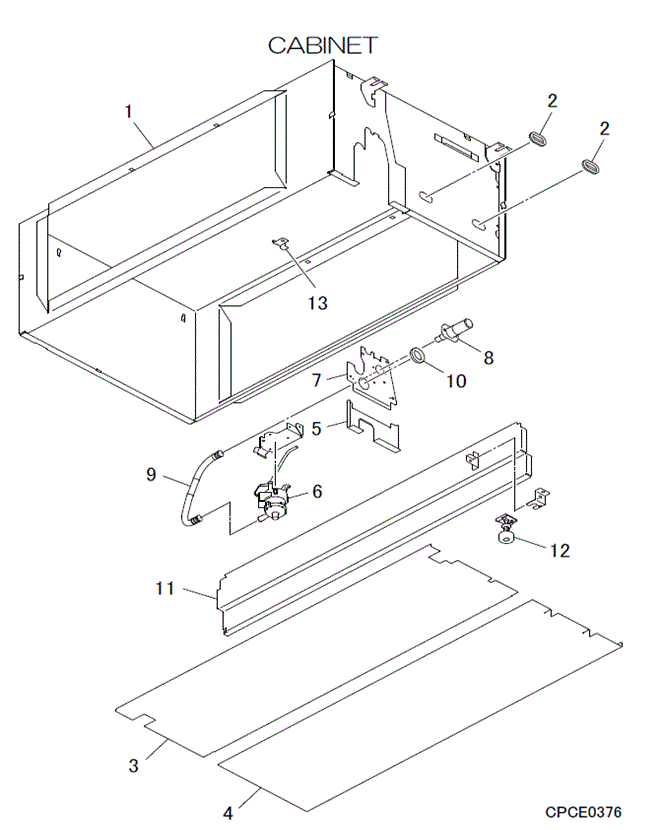

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-2]
In Stock
PJG100A003
CABINET ASSY
[2]
In Stock
SSA947B120
GROMMET
[3]
In Stock
PJG111A007
PLATE ASSY,BOTTOM(
[4]
In Stock
PJG111A009
PLATE ASSY,BOTTOM(
[5]
Out of Stock
PJG132A007
LID ASSY
[6]
In Stock
SSA451A012
DRAIN PUMP
Notes: White Plug with Red & White Cable (CNR - DM (DRAIN MOTOR)) plugs in CNR port on control pcb Show Image
[6-10]
Contact
PJG451A003B
PUMP ASSY, DRAIN
Contact
[7]
Contact
PJG132A010A
LID(PIPE)
Contact
[8]
Out of Stock
PSA422C003
SOCKET
[9]
In Stock
SSA423A110
HOSE,DRAIN
[10]
In Stock
S751W30
GROMMET
[11]
Contact
PJG115A006
STIFFENER ASSY
Contact
[12]
In Stock
SSA536A030
FLOAT SWITCH
[13]
In Stock
PJG116A015
BRACKET(STOPPER)
[14]
In Stock
PSA423A004B
HOSE ASSY,DRAIN
[15]
In Stock
V300Y32
HOSE CLAMP
Notes: SEE C: CONTROL & PARTS SET
