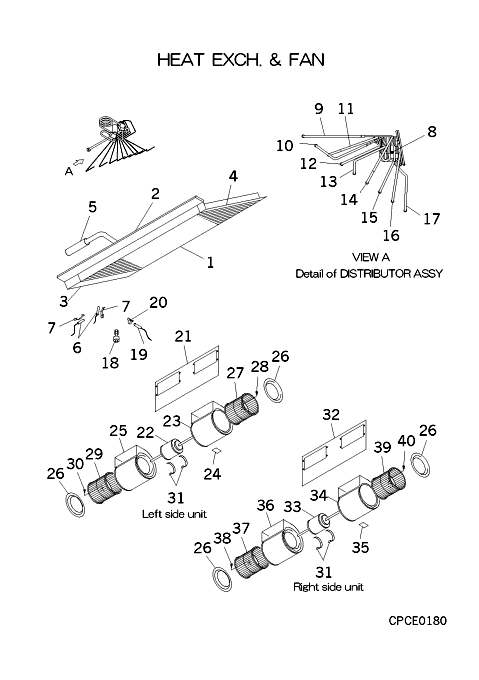

FDUA1001R HEAT EXCH. AND FAN

FDUA1001R HEAT EXCH. AND FAN

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJD311A001K HEAT EXCH In Stock Notes: !
  • [1-17] PJD301A033A HEAT EXCH Contact   Contact
  • [2] PJD141A002B PLATE BAFF Contact Notes: FRONT   Contact
  • [3] PJD141A007 PLATE BAFF Contact Notes: LEFT   Contact
  • [4] PJD141A008 PLATE BAFF Contact Notes: RIGHT   Contact
  • [5] PJD315D055 HEADER ASSY,GAS Contact Notes: !   Contact
  • [6] PJA551A005AG SENSOR In Stock Notes: THI-R1,2 Show Image
  • [7] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [8] SSA315A206J DISTRIBUTOR Contact   Contact
  • [8-17] PJD315A058A DISTRIBUTOR ASSY Contact   Contact
  • [9] PJD315B118A CAPILLARY A Contact Notes: !D3.0XD4.0 L400   Contact
  • [10] PJD315B147 CAPILLARY A Contact Notes: !D3.0XD4.0 L200   Contact
  • [11] PJD315B120A CAPILLARY A Contact Notes: !D2.8XD4.0 L400   Contact
  • [12] PJD315B121A CAPILLARY A Contact Notes: !D2.6XD4.0 L400   Contact
  • [13] PJD315B148 CAPILLARY A Contact Notes: !D2.6XD4.0 L400   Contact
  • [14] PJD315B123A CAPILLARY A Contact Notes: !D2.2XD4.0 L400   Contact
  • [15] PJD315B124A CAPILLARY A Contact Notes: !D2.0XD4.0 L400   Contact
  • [16] PJD315B125A CAPILLARY A Contact Notes: !D2.2XD4.0 L400   Contact
  • [17] PJD315B126A CAPILLARY A Contact Notes: !D2.6XD4.0 L400   Contact
  • [18] PJD536A002B SWITCH ASSY In Stock Notes: FS
  • [19] PJA551A010T SENSOR(TEMP In Stock Notes: THI-A Show Image
  • [19-20] PJD551A001C SENSOR ASSY Contact   Contact
  • [20] SSA937C290 CLIP Contact Notes: FOR THI-A   Contact
  • [21] PJD116A014A BRAKET FAN In Stock Notes: LEFT FAN EQUIP.
  • [22] SSA511A365V MOTOR AC In Stock Notes: LOOKING AT SUPPLY SIDE OF UNIT - LEFT SIDE MOTOR, LEFT FAN EQUIP.
  • [23-24] PJD433A001F CASING In Stock Notes: ONLY FOR SUPPLY PARTS RIGHT SIDE OF LEFT FAN EQUIP.
  • [24] RSA011H005 LABEL Contact   Contact
  • [25] PJD433A001C CASING In Stock Notes: LEFT SIDE OF LEFT FAN EQUIP.
  • [26] PDD433A003 SHROUD In Stock Substitute: RB32994
  • [27-28] SSA431C020B IMPELLER In Stock Notes: RIGHT SIDE OF LEFT FAN EQUIP.
  • [28] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY, M8X12
  • [29-30] SSA431C020C IMPELLER In Stock Notes: LEFT SIDE OF LEFT FAN EQUIP.
  • [30] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY, M8X12
  • [31] PFA116A108 BRACKET In Stock Show Image
  • [32] PJD116A014 FAN BRACKET In Stock Notes: RIGHT FAN EQUIP.
  • [33] SSA511A364V MOTOR AC In Stock Notes: RIGHT SIDE MOTOR - LOOKING AT SUPPLY SIDE OF UNIT, RIGHT FAN EQUIP.
  • [34-35] PJD433A001D CASING In Stock Notes: RIGHT SIDE OF RIGHT FAN EQUIP., ONLY FOR SUPPLY PARTSRIGHT SIDE OF RIGHT FAN EQUIP.
  • [35] RSA011H005 LABEL Contact   Contact
  • [36] PJD433A001A CASING In Stock Notes: LEFT SIDE OF RIGHT FAN EQUIP.
  • [37-38] SSA431C005 IMPELLER In Stock Substitute: RB32495 Notes: LEFT SIDE OF RIGHT FAN EQUIP.
  • [38] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY, M8X12
  • [39-40] SSA431C005A IMPELLER In Stock Substitute: RB32495A Notes: RIGHT SIDE OF RIGHT FAN EQUIP.
  • [40] SSA912F203 SCREW,SET In Stock Substitute: RK01594 Notes: 1PC ONLY, M8X12
SKU: FDUA1001R HEAT EXCH. AND FAN Category:
