FDUA1001R CONTROL AND PARTS SET

FDUA1001R CONTROL AND PARTS SET

Available Parts

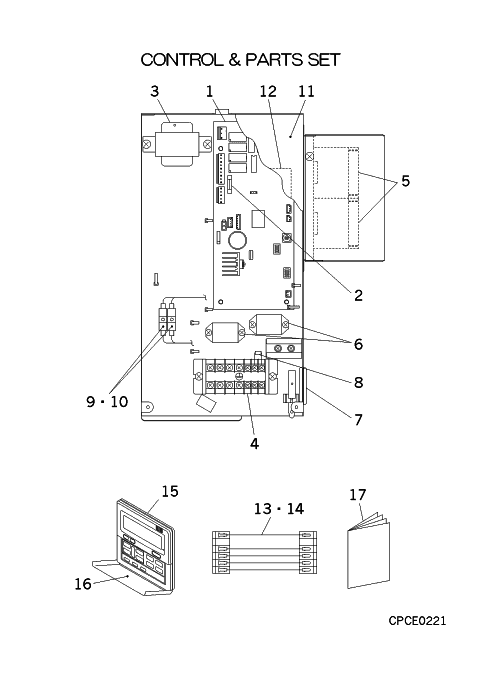

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A131ZC PWB ASSY In Stock Notes: ONLY FOR SUPPLY PARTS Show Image
  • [1-10] PJD501A053C CONTROL UNIT Contact Notes: !   Contact
  • [2] SSA564A116G FUSE(CURRENT) In Stock Notes: 3.15 AMP FUSE, F 3.15A Show Image
  • [3] SSA554A358A TRANSFORMER In Stock Notes: TRI Show Image
  • [4] SSA561B716FD BLOCK,TERMINAL Contact Notes: TB, TB   Contact
  • [5] SSA552A862K CAPACITOR In Stock Notes: CFI 10MF 450VAC, CFI1,2 Show Image
  • [6] SSA521F079 RELAY In Stock Notes: SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE, 52FL,FH Show Image
  • [7] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [8] PJD552D003 CAPACITOR A Contact   Contact
  • [9] SSA564A087H FUSE In Stock Notes: 6.3A, F1,2 6.3A Show Image
  • [10] SSA564B076 HOLDER,FUSE In Stock Show Image
  • [11-12] PJD142A003DC LID ASSY(CONTROL) Contact   Contact
  • [12] PJD011G018A LABEL,WIRING Contact Notes: !   Contact
  • [13] PJD504A002D WIRING ASSY In Stock Notes: CNF2-CNF4 Show Image
  • [14] PJD504A002C WIRING ASSY In Stock Notes: CNF3-CNF5 Show Image
  • [15-16] PJA502A700AC WALL CONTROLLER Out of Stock Substitute: RC-E1R Notes: RC-E1 / RC-E1R - 3 WIRE, X-Y-Z, RC-E1R
  • [16] PJA129A708 COVER Z Contact   Contact
  • [17] PJA012A733 MANUAL,INSTRUCTION Contact   Contact
  • [18] PJD011F036B LABEL,MODEL NAME Contact Notes: !   Contact
SKU: FDUA1001R CONTROL AND PARTS SET Category:
