FDU71VH/C CONTROL AND PARTS SET

Name: FDU71VH/C CONTROL AND PARTS SET
SKU: FDU71VH/C CONTROL AND PARTS SET
Availability: InStock

FDU71VH/C CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

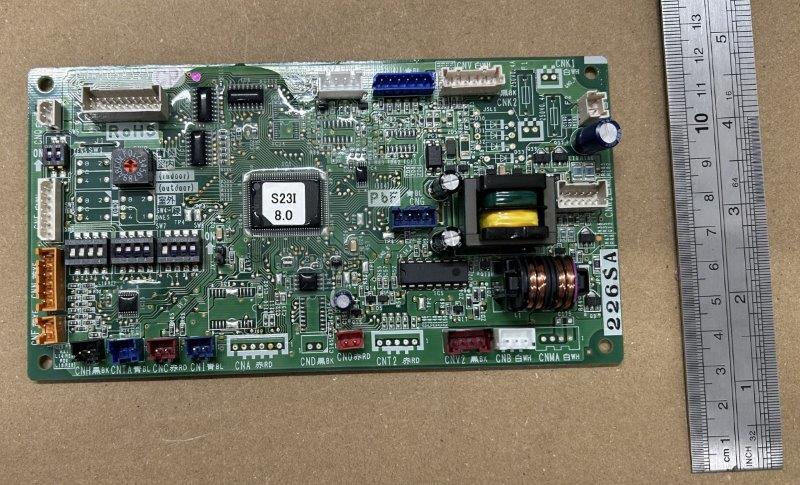

PJA505A228SA

PWB ASSY(CONTROL)

Notes: ONLY FOR SUPPLY PARTS

[1-11] Contact

PJG501A027AL

CONTROL UNIT

Contact

Notes: !

[2-4] In Stock

PJA505A235M

PWB ASSY (POWER)

Notes: ONLY FOR SUPPLY PARTS, PLUGS INTO FAN MOTOR

[3] In Stock

SSA564A149AH

FUSE(CURRENT)

Notes: F1 5A Show Image

[4] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F4 2A, 2 amp fuse

[5] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[6] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[7] In Stock

SSA554B109

REACTOR

Show Image

[8] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A, THI-A - RETURN AIR SENSOR Show Image

[9] In Stock

PJG504A024B

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB Show Image

[10] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[11] Contact

PJF504A036N

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB

[12] In Stock

PJG142A015A

LID ASSY,CONTROL B

[13] Contact

PJG011G019C

LABEL,WIRING

Contact

Notes: !

[14] Contact

PJZ502A031AH

CONTROL ASSY,REMOT

Contact

Notes: !RC-EX3D

[15] In Stock

PSA423A004B

HOSE ASSY,DRAIN

Show Image

[15-17] Out of Stock

PJF008A001CA

PARTS SET

[16] In Stock

V300Y32

HOSE CLAMP

[17] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[18] In Stock

PJG006A005B

INSTALLATION SET

Notes: FOR ZONE CONTROL, HAS PLUGS ON BOTH ENDS - suits many /C service codes

[19] Contact

PJG011F075GH

LABEL,MODEL NAME

Contact

Notes: !

SKU: FDU71VH/C CONTROL AND PARTS SET Category: Uncategorised
