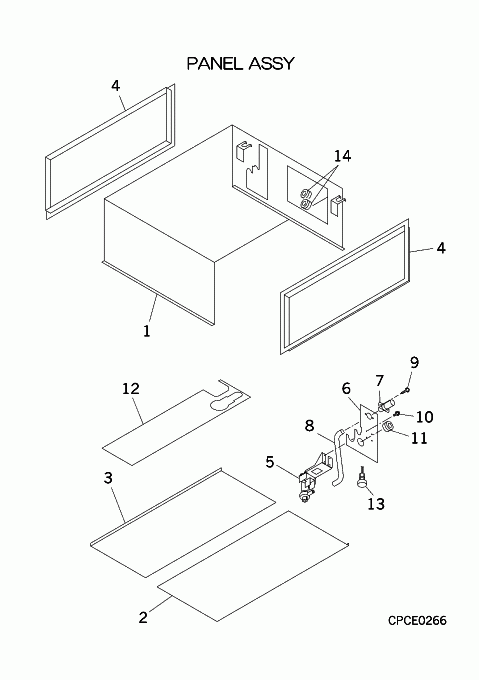

FDU71V PANEL ASSY

FDU71V PANEL ASSY

FDU71V PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJD124A012N
PANEL,TOP
Contact
[2] Contact
PJD119A170
PLATE ASSY,BOTT.(I
Contact
[3] Contact
PJD119A129B
PLATE ASSY,BOTTOM
Contact
[4] Contact
PJD438A033D
JOINT,DUCT
Contact
[5] In Stock
PJA451A510H
DRAIN PUMP
[5-10] In Stock
PJD451A001
PUMP DRAIN ASSY
Notes: includes Lid, Scoket, Drain Hose & Tap Screws
[6] Out of Stock
PJD132A004
LID
[7] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[7-8] Out of Stock
PJD422C001
SOCKET ASSY, DRAIN
[8] In Stock
SSA423A092A
HOSE,DRAIN
Show Image
SSA423A092A
[9] Contact
W011D04X012
TAP-SCREW
Contact
Notes: 4X12, 1pc ONLY
[10] Contact
SSA913D013
TAP SCREW
Contact
Notes: 4X8, 1pc ONLY
[11] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[12] Contact
PJD141A034
PLATE ASSY
Contact
[13] In Stock
PJD536A004B
SWITCH FLOAT
Notes: FS Show Image
PJD536A004B
[14] In Stock
S751W30X
GROMMET V14
Notes: D35, ***SOLD INDIVIDUALLY*** Show Image
S751W30X
[15] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[16] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
SKU: FDU71V PANEL ASSY Category:
