FDU650FKXZE1/F HEAT EXCH. AND FAN

Name: FDU650FKXZE1/F HEAT EXCH. AND FAN
SKU: FDU650FKXZE1/F HEAT EXCH. AND FAN
Availability: InStock

FDU650FKXZE1/F HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

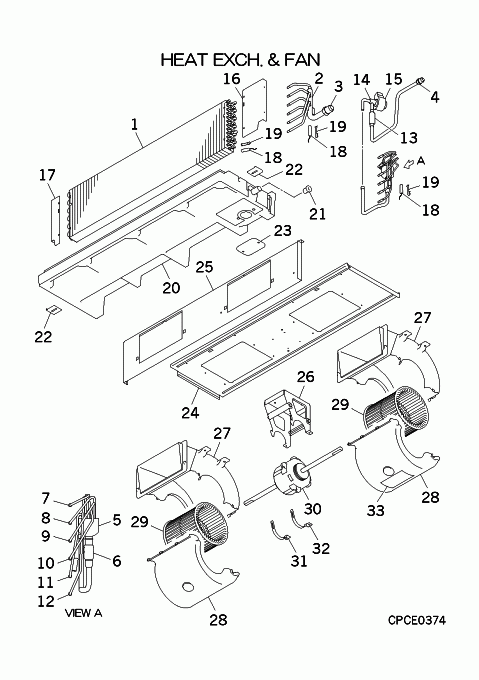

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJG311A001C

HEAT EXCH(AIR)

Contact

Notes: !

[1-19] Contact

PJG301A004M

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJR315D506D

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

SSA323F092F

UNION,SOLDER

Contact

[4] In Stock

SSA323F088

UNION(SLD)

Notes: LENGTH 2.6CM Show Image

[5] Contact

PJG315A001C

DISTRIBUTOR

Contact

Notes: !

[5-12] Contact

PJG315A006A

DISTRIBUTOR ASSY

Contact

[6] In Stock

SSA357A051

STRAINER

Show Image

[7] Contact

PJG315B001

CAPILLARY

Contact

Notes: !D2.4XD4.0 L300

[8] Contact

PJG315B001A

CAPILLARY

Contact

Notes: !D2.4XD4.0 L180

[9] Contact

PJG315B001B

CAPILLARY

Contact

Notes: !D2.8XD4.0 L180

[10] Contact

PJG315B001C

CAPILLARY

Contact

Notes: !D2.8XD4.0 L180

[11] Contact

PJG315B001G

CAPILLARY

Contact

Notes: !D3.0XD4.0 L180

[12] Contact

PJG315B001H

CAPILLARY

Contact

Notes: !D2.2XD4.0 L300

[13] Out of Stock

SSA357A005P

STRAINER

Show Image

[14] In Stock

SSA387F045B

VALVE,BODY(EXP)

Notes: SM Show Image

[15] In Stock

SSA382F229W

COIL,SOLENOID

Notes: FOR SM

[16] Contact

PJG141A003

PLATE,BAFFLE(R)

Contact

[17] Contact

PJG141A004

PLATE,BAFFLE(L)

Contact

[18] In Stock

PJF551A002H

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3, LENGTH 68.5CM Show Image

[19] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[20-21] In Stock

PJG454A001C

DRAIN PAN

[21] In Stock

SSA326A003F

PLUG

Show Image

[22] In Stock

PJG116A009

BRACKET

Show Image

[23] In Stock

PJG142A006

LID ASSY(DRAIN)

Notes: LENGTH 10CM Show Image

[24] Out of Stock

PJG119A001A

PLATE(BASE,FAN)

[25] Out of Stock

PJG119A003A

PLATE,FAN

[26] In Stock

PJG116A001B

BRACKET ASSY(MOTOR)

Show Image

[27] In Stock

PJG433B001

BELLMOUTH

Notes: Upper

[28] In Stock

PJG433B002

BELLMOUTH

Notes: Lower

[29] In Stock

SSA431D093A

IMPELLER

Show Image

[30] In Stock

SSA512T109ZC

MOTOR,DC

Notes: PREDECESSOR:SSA512T109D, TWIN SHAFT

[31] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[32] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[33] Contact

PSA011H046

LABEL,NOTICE

Contact

SKU: FDU650FKXZE1/F HEAT EXCH. AND FAN Category: Uncategorised
