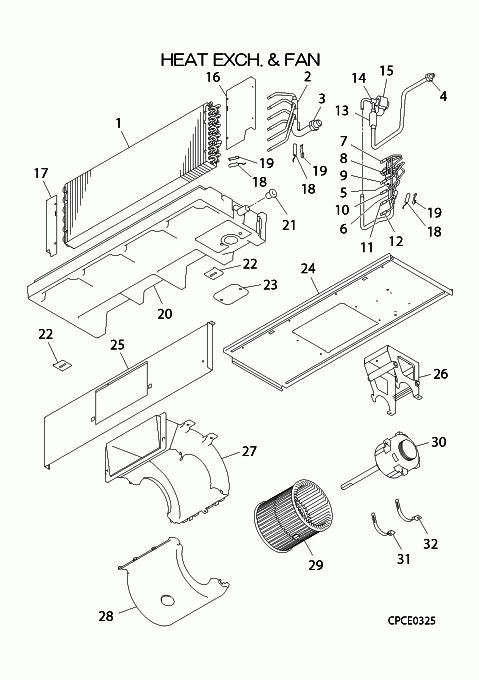

FDU45KXE6F-W/1 HEAT EXCH. AND FAN

FDU45KXE6F-W/1 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJG311A001B
Contact
Notes: ?
[1-19] Contact
PJG301A016A
HEAT EXCH ASSY(AIR)
Contact
[2-3] Contact
PJR315D506C
HEADER ASSY,GAS
Contact
Notes: ?
[3] Contact
SSA323F092C
UNION,SOLDER
Contact
[4] Contact
SSA323F092
UNION,SOLDER
Contact
[5] Contact
PJG315A001C
DISTRIBUTOR
Contact
Notes: ?
[5-12] Contact
PJG315A023
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A051
STRAINER
SSA357A051
[7] Contact
PJG315B001
CAPILLARY
Contact
Notes: ?f2.4xf4.0 L300, !D2.4XD4.0 L300
[8] Contact
PJG315B001A
CAPILLARY
Contact
Notes: ?f2.4xf4.0 L180, !D2.4XD4.0 L180
[9] Contact
PJG315B001B
CAPILLARY
Contact
Notes: ?f2.8xf4.0 L180, !D2.8XD4.0 L180
[10] Contact
PJG315B001C
CAPILLARY
Contact
Notes: ?f2.8xf4.0 L180, !D2.8XD4.0 L180
[11] Contact
PJG315B001G
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L180, !D3.0XD4.0 L180
[12] Contact
PJG315B001H
CAPILLARY
Contact
Notes: ?f2.2xf4.0 L300, !D2.2XD4.0 L300
[13] Contact
SSA357A059C
STRAINER
Contact
[14] In Stock
SSA387F086B
VALVE,BODY(EXP)
Notes: SM
[15] In Stock
SSA382F228AW
COIL,SOLENOID
Notes: FOR SM
[16] Contact
PJG141A003
PLATE,BAFFLE(R)
Contact
[17] Contact
PJG141A004
PLATE,BAFFLE(L)
Contact
[18] In Stock
PJF551A002H
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, LENGTH 68.5CM Show Image
PJF551A002H
[19] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[20-21] In Stock
PJG454A001B
DRAIN PAN
[21] In Stock
SSA326A003F
PLUG
SSA326A003F
[22] In Stock
PJG116A009
BRACKET
PJG116A009
[23] In Stock
PJG142A006
LID ASSY(DRAIN)
Notes: LENGTH 10CM Show Image
PJG142A006
[24] Contact
PJG119A001
PLATE(BASE,FAN)
Contact
[25] Contact
PJG119A003
PLATE,FAN
Contact
[26] In Stock
PJG116A001B
BRACKET ASSY(MOTOR)
PJG116A001B
[27] In Stock
PJG433B001
BELLMOUTH
Notes: Upper
[28] In Stock
PJG433B002
BELLMOUTH
Notes: Lower
[29] In Stock
SSA431D093A
IMPELLER
SSA431D093A
[30] In Stock
SSA512T108ZC
MOTOR,DC
Notes: SINGLE SHAFT
[31] In Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[32] In Stock
PJG116A063A
BRACKET(MOTOR)
Notes: RIGHT Show Image
PJG116A063A
SKU: FDU45KXE6F-W/1 HEAT EXCH. AND FAN Category:
