FDU280KXZE3-W/P CONTROL AND PARTS SET

Name: FDU280KXZE3-W/P CONTROL AND PARTS SET
SKU: FDU280KXZE3-W/P CONTROL AND PARTS SET
Availability: InStock

FDU280KXZE3-W/P CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

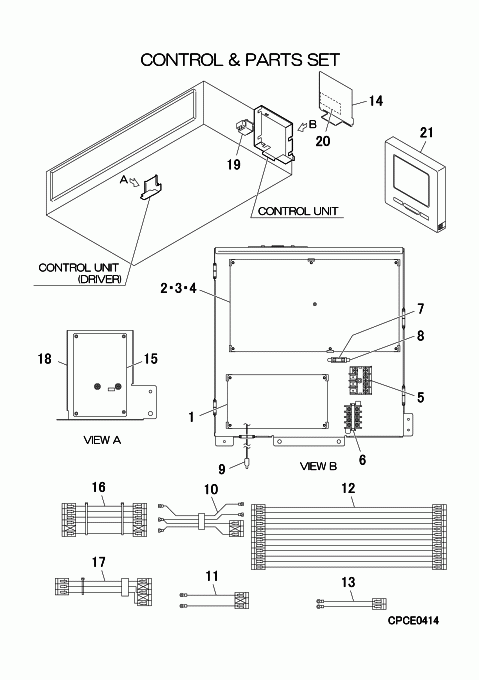

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJA505A229PR

PWB ASSY(CONTROL)

Contact

Notes: ONLY FOR SUPPLY PARTS

[1-13] Contact

PJG501A014JT

CONTROL UNIT

Contact

Notes: !

[2-4] Contact

PJA505A248AC

PWB ASSY(POWER)

Contact

Notes: ONLY FOR SUPPLY PARTS

[3] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F1 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[4] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F2 2A, 2 amp fuse

[5] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[6] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[7] In Stock

SSA564A149AL

FUSE(CURRENT)

Notes: F3 10A, 10A Show Image

[8] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[9] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A, THI-A - RETURN AIR SENSOR Show Image

[10] Contact

PJG504A017

HARNESS ASSY

Contact

Notes: TB1 1,TB1 2,TB1 3- FH,T2,CNW3

[11] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[12] In Stock

PJG504A024H

WIRING (PWB)

Notes: CNW2 PWB- CNW1 PWB Show Image

[13] Contact

PJF504A010J

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[14] In Stock

PJG142A031

LID,CONTROL BOX

[15] Contact

PJA505A251B

PWB ASSY(MOTOR)

Contact

Notes: ONLY FOR SUPPLY PARTS

[15-18] Contact

PJG501A015B

CONTROL UNIT(DRIVE

Contact

Notes: !

[16] Contact

PJG504A015A

WIRING (CNM)

Contact

Notes: CNM1 PWB- CNM PWB

[17] In Stock

PJG504A016

WIRING(FM)

Notes: CNFM2- CNFM PWB Show Image

[18] In Stock

PJG142A034A

LID ASSY(DRIVER)

[19] In Stock

SSA554B115

REACTOR

[20] Contact

PJG011G033

LABEL,WIRING

Contact

Notes: !

[21] Contact

PJZ502A031AL

CONTROL ASSY,REMOT

Contact

Notes: !RC-EX3D

[22] Contact

PJG011F091AT

LABEL,MODEL NAME

Contact

Notes: !

SKU: FDU280KXZE3-W/P CONTROL AND PARTS SET Category: Uncategorised
