FDU280KXZE1/F CONTROL AND PARTS SET

FDU280KXZE1/F CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

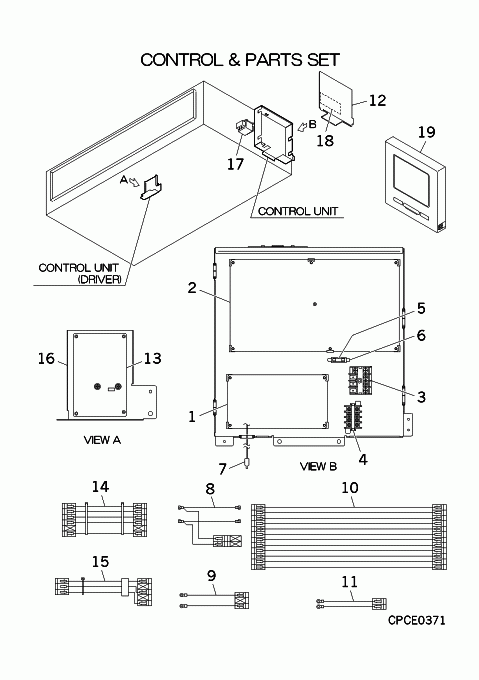

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A229PJ
PWB ASSY CONTROL
Notes: ONLY FOR SUPPLY PARTS, PWB1 - CONFIRM SERVICE CODE BEFORE ORDERING
[1-11] Contact
PJG501A014GT
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] In Stock
PJA505A248AB
PWB ASSY (POWER)
Notes: ONLY FOR SUPPLY PARTS
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
SSA564A149AL
FUSE(CURRENT)
Notes: F3 10A, F1 10A Show Image
SSA564A149AL
[6] In Stock
SSA564B076
HOLDER,FUSE
Show Image
SSA564B076
[7] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[8] Contact
PJG504A017A
HARNESS ASSY
Contact
Notes: TB1 L,TB1 N- FH,T2,CNU
[9] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[10] Contact
PJG504A001H
WIRING(PWB)
Contact
Notes: CNW2 PWB- CNW1 PWB
[11] Contact
PJF504A010J
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[12] Contact
PJG142A031
LID,CONTROL BOX
Contact
[13] Out of Stock
PJA505A251A
PWB ASSY(MOTOR)
Notes: ONLY FOR SUPPLY PARTS
[13-16] Contact
PJG501A015
CONTROL UNIT(DRIVE
Contact
Notes: !, NOT AVAILABLE
[14] Contact
PJG504A015
WIRING(CNM)
Contact
Notes: CNM1 PWB- CNM PWB
[15] Contact
PJG504A016
WIRING(FM)
Contact
Notes: CNFM2- CNFM PWB
[16] Contact
PJG142A034
LID ASSY(DRIVER)
Contact
[17] In Stock
SSA554B115
REACTOR
[18] Contact
PJG011G027
LABEL,WIRING
Contact
Notes: !
[19] Contact
PJZ502A031AC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH
[20] Contact
PJG011F064T
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDU280KXZE1/F CONTROL AND PARTS SET Category:
