FDU160KXE6F-W/1 HEAT EXCH. AND FAN

FDU160KXE6F-W/1 HEAT EXCH. AND FAN

Available Parts

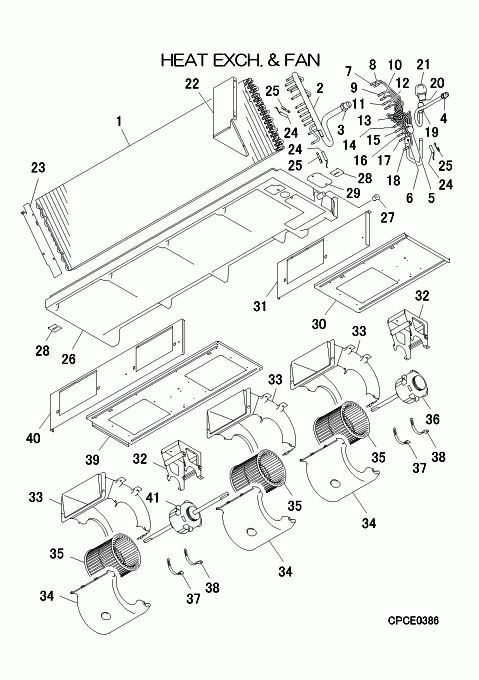

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJG311A002A HEAT EXCH(AIR) Contact Notes: ?   Contact
  • [1-25] PJG301A017 HEAT EXCH ASSY(AIR) Contact   Contact
  • [2-3] PJG315D021 HEADER ASSY,GAS Contact Notes: ?   Contact
  • [3] SSA323F092F UNION,SOLDER Contact   Contact
  • [4] SSA323F088 UNION(SLD) In Stock
  • [5] PJG315A001F DISTRIBUTOR Contact Notes: ?   Contact
  • [5-18] PJG315A024 DISTRIBUTOR ASSY Contact   Contact
  • [6] SSA357A051 STRAINER In Stock Show Image
  • [7] PJG315B002 CAPILLARY Contact Notes: !D1.8XD4.0 L360, ?f1.8xf4.0 L360   Contact
  • [8] PJG315B002A CAPILLARY Contact Notes: !D2.0XD4.0 L300, ?f2.0xf4.0 L300   Contact
  • [9] PJG315B002B CAPILLARY Contact Notes: !D3.0XD4.0 L260, ?f3.0xf4.0 L260   Contact
  • [10] PJG315B002C CAPILLARY Contact Notes: !D2.4XD4.0 L240, ?f2.4xf4.0 L240   Contact
  • [11] PJG315B002D CAPILLARY Contact Notes: !D2.6XD4.0 L220, ?f2.6xf4.0 L220   Contact
  • [12] PJG315B002F CAPILLARY Contact Notes: !D2.6XD4.0 L200, ?f2.6xf4.0 L200   Contact
  • [13] PJG315B002G CAPILLARY Contact Notes: !D2.6XD4.0 L200, ?f2.6xf4.0 L200   Contact
  • [14] PJG315B002H CAPILLARY Contact Notes: !D2.6XD4.0 L200, ?f2.6xf4.0 L200   Contact
  • [15] PJG315B002J CAPILLARY Contact Notes: !D2.4XD4.0 L220, ?f2.4xf4.0 L220   Contact
  • [16] PJG315B002K CAPILLARY Contact Notes: !D2.0XD4.0 L240, ?f2.0xf4.0 L240   Contact
  • [17] PJG315B002L CAPILLARY Contact Notes: !D2.0XD4.0 L260, ?f2.0xf4.0 L260   Contact
  • [18] PJG315B002M CAPILLARY Contact Notes: !D2.6XD4.0 L340, ?f2.6xf4.0 L340   Contact
  • [19] SSA357A059C STRAINER Contact   Contact
  • [20] SSA387F074B VALVE,BODY(EXP) Contact Notes: SM   Contact
  • [21] SSA382F228AW COIL,SOLENOID Contact Notes: FOR SM   Contact
  • [22] PJG141A001 PLATE,BAFFLE(R) Contact   Contact
  • [23] PJG141A002 PLATE,BAFFLE(L) Contact   Contact
  • [24] PJF551A002J SENSOR In Stock Notes: THI-R1,2,3, THI-R1,2,3 Show Image
  • [25] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [26-27] PJG454A003 DRAIN PAN In Stock
  • [27] SSA326A003F PLUG In Stock Show Image
  • [28] PJG116A009 BRACKET In Stock Show Image
  • [29] PJG142A006 LID ASSY(DRAIN) In Stock
  • [30] PJG119A004B PLATE(BASE,FAN) Contact Notes: RIGHT, RIGHT   Contact
  • [31] PJG119A005 PLATE,FAN Contact Notes: RIGHT, RIGHT   Contact
  • [32] PJG116A001B BRACKET ASSY(MOTOR In Stock Show Image
  • [33] PJG433B001 BELLMOUTH In Stock
  • [34] PJG433B002 BELLMOUTH In Stock
  • [35] SSA431D093A IMPELLER In Stock Show Image
  • [36] SSA512T108ZC MOTOR,DC In Stock Notes: RIGHT
  • [37] PFA116A207G BRACKET In Stock Substitute: PJG116A063 Notes: LEFT Show Image
  • [38] PFA116A207H BRACKET In Stock Substitute: PJG116A063A Notes: RIGHT Show Image
  • [39] PJG119A004C PLATE(BASE,FAN) Contact Notes: LEFT, LEFT   Contact
  • [40] PJG119A005A PLATE,FAN Contact Notes: LEFT, LEFT   Contact
  • [41] SSA512T110ZC MOTOR,DC In Stock Notes: LEFT
SKU: FDU160KXE6F-W/1 HEAT EXCH. AND FAN Category:
