FDU160KXE6F/H CABINET

FDU160KXE6F/H CABINET

FDU160KXE6F/H CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

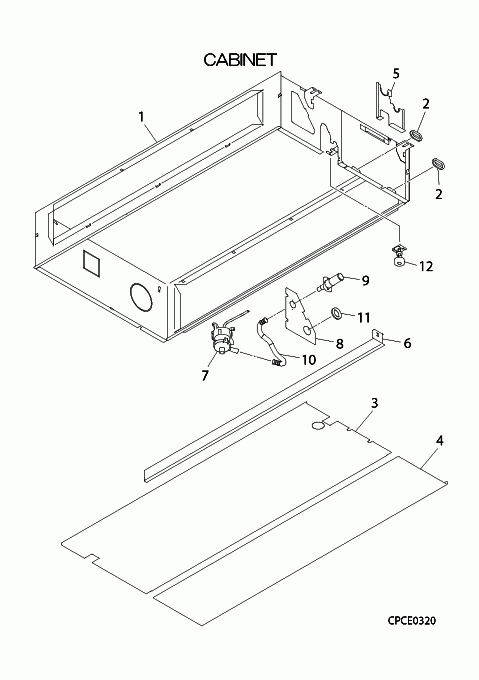

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact
PJG100A001P
CABINET ASSY
Contact
Notes: !
[2] In Stock
SSA947B120
GROMMET
Notes: LENGTH 5.5CM Show Image
SSA947B120
[3] Contact
PJG111A001B
PLATE ASSY,BOTTOM(
Contact
[4] Contact
PJG111A003B
PLATE ASSY,BOTTOM(
Contact
[5] In Stock
PJG132A005
LID ASSY
[6] Contact
PJG115A002B
STIFFENER(BOTTOM)
Contact
[7] In Stock
SSA451A012
DRAIN PUMP
Notes: White Plug with Red & White Cable (CNR - DM (DRAIN MOTOR)) plugs in CNR port on control pcb Show Image
SSA451A012
[7-11] Contact
PJG451A002C
PUMP ASSY,DRAIN
Contact
[8] In Stock
PJG132A002
LID(PUMP)
Show Image
PJG132A002
[9] Out of Stock
PSA422C003
SOCKET
[10] In Stock
SSA423A110
HOSE,DRAIN
Show Image
SSA423A110
[11] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[12] In Stock
SSA536A030
FLOAT SWITCH
Notes: FS, LENGTH 107.5CM Show Image
SSA536A030
[13] In Stock
PSA423A004B
HOSE ASSY,DRAIN
Notes: SEE C: CONTROL & PARTS SET Show Image
PSA423A004B
[14] In Stock
V300Y32
HOSE CLAMP
Notes: SEE C: CONTROL & PARTS SET
SKU: FDU160KXE6F/H CABINET Category:
