FDU140KXE6F-W/1 HEAT EXCH. AND FAN

FDU140KXE6F-W/1 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

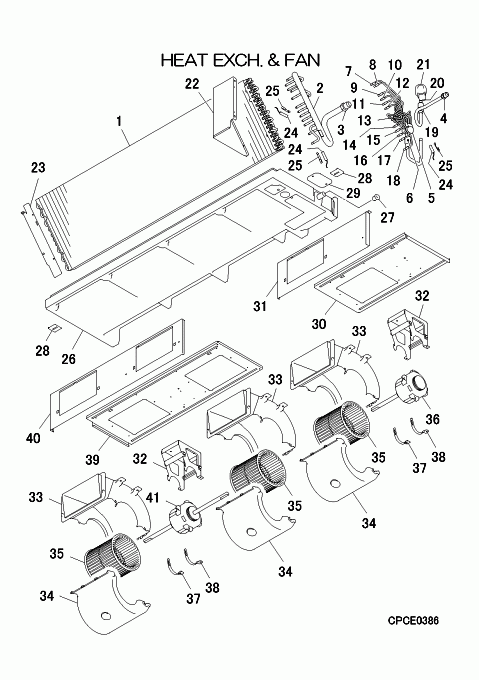

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJG311A002A
HEAT EXCH(AIR)
Contact
Notes: ?
[1-25] In Stock
PJG301A017
HEAT EXCH ASSY(AIR)
Notes: Indoor Heat Exchanger Coil assembly
[2-3] Contact
PJG315D021
HEADER ASSY,GAS
Contact
Notes: ?
[3] Contact
SSA323F092F
UNION,SOLDER
Contact
[4] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[5] Contact
PJG315A001F
DISTRIBUTOR
Contact
Notes: ?
[5-18] Contact
PJG315A024
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A051
STRAINER
SSA357A051
[7] Contact
PJG315B002
CAPILLARY
Contact
Notes: ?f1.8xf4.0 L360, !D1.8XD4.0 L360
[8] Contact
PJG315B002A
CAPILLARY
Contact
Notes: ?f2.0xf4.0 L300, !D2.0XD4.0 L300
[9] Contact
PJG315B002B
CAPILLARY
Contact
Notes: ?f3.0xf4.0 L260, !D3.0XD4.0 L260
[10] Contact
PJG315B002C
CAPILLARY
Contact
Notes: ?f2.4xf4.0 L240, !D2.4XD4.0 L240
[11] Contact
PJG315B002D
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L220, !D2.6XD4.0 L220
[12] Contact
PJG315B002F
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L200, !D2.6XD4.0 L200
[13] Contact
PJG315B002G
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L200, !D2.6XD4.0 L200
[14] Contact
PJG315B002H
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L200, !D2.6XD4.0 L200
[15] Contact
PJG315B002J
CAPILLARY
Contact
Notes: ?f2.4xf4.0 L220, !D2.4XD4.0 L220
[16] Contact
PJG315B002K
CAPILLARY
Contact
Notes: ?f2.0xf4.0 L240, !D2.0XD4.0 L240
[17] Contact
PJG315B002L
CAPILLARY
Contact
Notes: ?f2.0xf4.0 L260, !D2.0XD4.0 L260
[18] Contact
PJG315B002M
CAPILLARY
Contact
Notes: ?f2.6xf4.0 L340, !D2.6XD4.0 L340
[19] Contact
SSA357A059C
STRAINER
Contact
[20] In Stock
SSA387F074B
VALVE,BODY(EXP)
Notes: SM
[21] In Stock
SSA382F228AW
COIL,SOLENOID
Notes: FOR SM
[22] Contact
PJG141A001
PLATE,BAFFLE(R)
Contact
[23] Contact
PJG141A002
PLATE,BAFFLE(L)
Contact
[24] In Stock
PJF551A002J
SENSOR ASSY
Notes: THI-R1,2,3 Show Image
PJF551A002J
[25] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[26-27] In Stock
PJG454A003
DRAIN PAN
[27] In Stock
SSA326A003F
PLUG
SSA326A003F
[28] In Stock
PJG116A009
BRACKET
PJG116A009
[29] In Stock
PJG142A006
LID ASSY(DRAIN)
Notes: LENGTH 10CM Show Image
PJG142A006
[30] Contact
PJG119A004B
PLATE(BASE,FAN)
Contact
Notes: RIGHT
[31] Contact
PJG119A005
PLATE,FAN
Contact
Notes: RIGHT
[32] In Stock
PJG116A001B
BRACKET ASSY(MOTOR)
PJG116A001B
[33] In Stock
PJG433B001
BELLMOUTH
Notes: Upper
[34] In Stock
PJG433B002
BELLMOUTH
Notes: Lower
[35] In Stock
SSA431D093A
IMPELLER
SSA431D093A
[36] In Stock
SSA512T108ZC
MOTOR,DC
Notes: RIGHT, SINGLE SHAFT
[37] In Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[38] In Stock
PJG116A063A
BRACKET(MOTOR)
Notes: RIGHT Show Image
PJG116A063A
[39] Contact
PJG119A004C
PLATE(BASE,FAN)
Contact
Notes: LEFT
[40] Contact
PJG119A005A
PLATE,FAN
Contact
Notes: LEFT
[41] In Stock
SSA512T110ZC
MOTOR,DC
Notes: LEFT
