FDU100VH/C CONTROL AND PARTS SET

FDU100VH/C CONTROL AND PARTS SET

FDU100VH/C CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

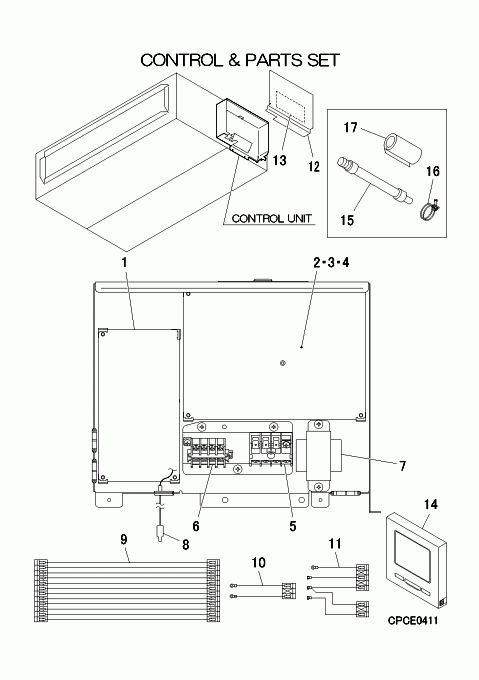

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA505A228SB
PWB ASSY(CONTROL)
Contact
Notes: ONLY FOR SUPPLY PARTS
[1-11] Contact
PJG501A027AN
CONTROL UNIT
Contact
Notes: !
[2-4] In Stock
PJA505A235PF
PWB ASSY(POWER)
Notes: ONLY FOR SUPPLY PARTS

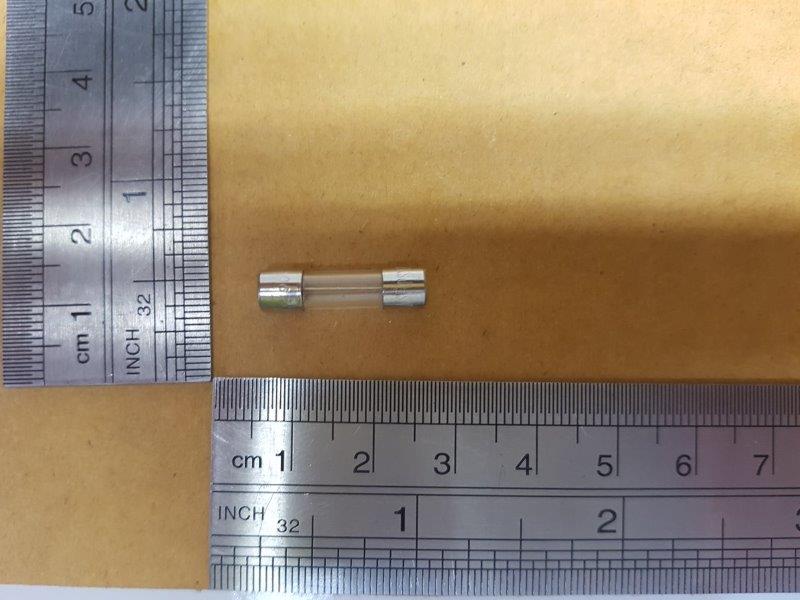

[3] In Stock
SSA564A149AJ
FUSE (CURRENT)
Notes: F1 6.3A
[4] In Stock
SSA564A149AC
FUSE(CURRENT)
Notes: F3 2A, 2 amp fuse
[5] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[6] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[7] In Stock
SSA554B110
REACTOR
Show Image
SSA554B110
[8] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A, THI-A - RETURN AIR SENSOR Show Image
PSA551A001CG
[9] In Stock
PJG504A024B
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB Show Image
PJG504A024B
[10] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[11] Contact
PJF504A036N
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2,TB1 3-CNW0 PWB,CNW3 PWB
[12] In Stock
PJG142A015A
LID ASSY,CONTROL B
[13] Contact
PJG011G019C
LABEL,WIRING
Contact
Notes: !
[14] Contact
PJZ502A031GH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EXZ3D
[15] In Stock
PSA423A004B
HOSE ASSY,DRAIN
Show Image
PSA423A004B
[15-17] In Stock
PJF008A001CA
PARTS SET
[16] In Stock
V300Y32
HOSE CLAMP
[17] Contact
PJF153B010A
INSULATION,PIPE
Contact
[18] In Stock
PJG006A005B
INSTALLATION SET
Notes: FOR ZONE CONTROL, HAS PLUGS ON BOTH ENDS - suits many /C service codes
[19] Contact
PJG011F075GL
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDU100VH/C CONTROL AND PARTS SET Category:
