FDTWJ71HKXE2B HEAT EXCH. ASSY

FDTWJ71HKXE2B HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

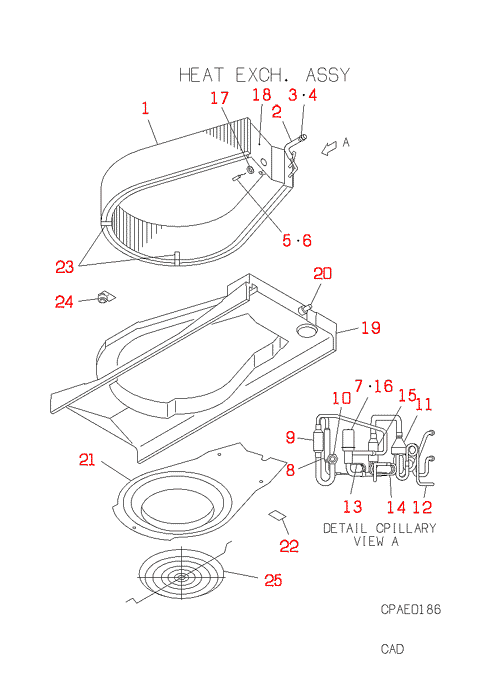

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB311A200
HEAT EXCH(AIR)
Contact
[1-18] Contact
PJB301A204D
HEAT EXCH ASSY(AIR
Contact
[2-4] Contact
PJB315D208A
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA323F075C
UNION
Contact
[4] Contact
SSA357H034A
STRAINER
Contact
[5] In Stock
PJA551A005W
SENSOR
Notes: THI-R Show Image
PJA551A005W
[6] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[7] In Stock
SSA387F021A
EXP HKXA
Notes: Expansion Valve Body
[8] In Stock
SSA385A029
VALVE
Notes: VALVE Show Image
SSA385A029
[9] Contact
SSA357A008BK
STRAINER
Contact
[10] Contact
SSA323F012A
UNION
Contact
[11] Contact
SSA315A255B
DISTRIBUTOR
Contact
[11-12] Contact
PJB315A214
DISTRIBUT0R
Contact
[11-15] Contact
PJB315A215
DISTRIBUTOR
Contact
[12] Contact
PJB315B397
CAPILLARY
Contact
Notes: !D3.5XD5.0 L250
[13] Contact
PJB315B398
CAPILLARY
Contact
Notes: !D1.0XD2.0 L500
[14] Contact
PJB315B399
CAPILLARY
Contact
Notes: !D3.0XD4.0 L350
[15] Contact
SSA357A008BH
STRAINER
Contact
[16] Contact
SSA382F451D
COIL,SOLENOID
Contact
Substitute: SSA382F451J Notes: SM
[17] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[18] Contact
PJB141A200
PLATE,BAFFLE
Contact
[19-20] Contact
PJB454A202
PAN DRAIN
Contact
[20] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[21-22] Contact
PJB433A201B
BELLMOUTH
Contact
Notes: ONLY FOR SUPPLY PARTS
[22] Contact
RSA011H005A
LABEL,NOTIC
Contact
[23] Contact
PJA116A508A
BRACKET
Contact
[24] In Stock
PJA536A501B
SWITCH FLOT
Notes: FS Show Image
PJA536A501B
[25] Contact
PJB131A201
GUARD,FAN
Contact
SKU: FDTWJ71HKXE2B HEAT EXCH. ASSY Category:
