FDTWJ56HKXE2B FAN ASSY AND CABINET

Name: FDTWJ56HKXE2B FAN ASSY AND CABINET
SKU: FDTWJ56HKXE2B FAN ASSY AND CABINET
Availability: InStock

FDTWJ56HKXE2B FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

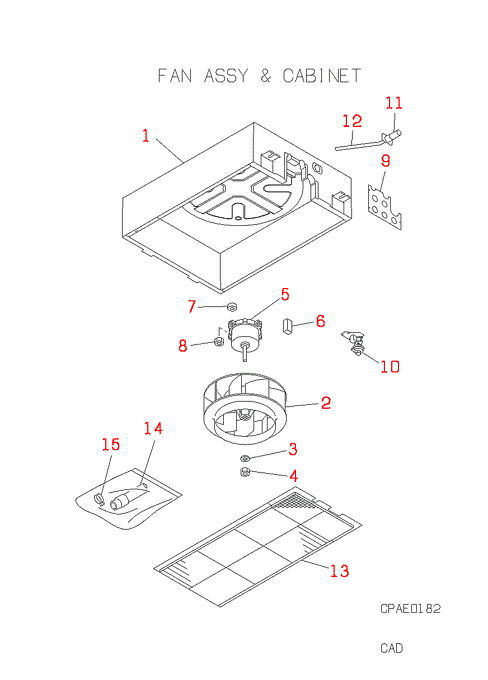

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJB100A200

CABINET ASSY

Contact

[2] In Stock

SSA431J011

FAN,TURBO

[3] In Stock

W205H10

WASHER

Notes: 1pc ONLY Show Image

[4] In Stock

N001A10

NUT

Notes: 1pc Show Image

[5] In Stock

SSA511T094H

MOTOR,AC

Notes: ROAD SERVICE

[6] Contact

SSA552A075

CAPACITOR

Contact

Notes: CFI 5MF 350VAC

[7] In Stock

SSA941C296

CUSHION LUB

Show Image

[8] In Stock

SSA914C015A

NUT FLANGE

Notes: 1pc Show Image

[9] Contact

PJB132A200

LID

Contact

[10] Out of Stock

PJA451A505C

PUMP DRAIN

Substitute: OUT OF PRODUCTION

[11] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[11-12] Contact

PJB422C200

SOCKET DRA

Contact

[12] In Stock

SSA423A086

HOSE,DRAIN

Show Image

[13] In Stock

PJB437A200

FILTER FDTW

Notes: W775XD420(T25)

[14] In Stock

PSA006A039

HOSE SET, DRAIN

[14-15] Out of Stock

PJA006A317

PARTS SET

Notes: INCL.CLAMP,HOSE INSULATION SET HOSE,DRAIN

[15] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image
