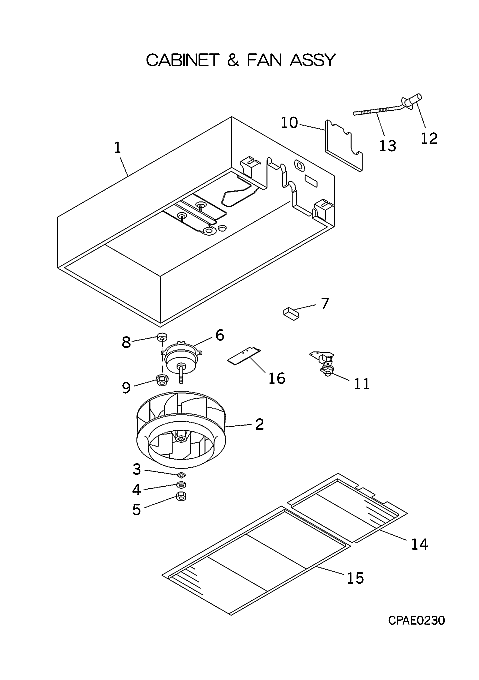

FDTW90KXE6 CABINET AND FAN ASSY

FDTW90KXE6 CABINET AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB100A201B
CABINET ASSY
Contact
[2] In Stock
SSA431J005
FAN,TURBO
[3] Contact
PJA116A123A
STOPPER
Contact
[4] In Stock
W205H10
WASHER
Notes: 1pc ONLY Show Image
W205H10
[5] In Stock
N001A10
NUT
Notes: 1pc Show Image
N001A10
[6] In Stock
SSA511T103F
MOTOR,AC
[7] In Stock
SSA552A260S
CAPACITOR,R
Notes: CFI 3.5MF 450VAC Show Image
SSA552A260S
[8] In Stock
SSA941C296
CUSHION LUB
Show Image
SSA941C296
[9] In Stock
SSA914C015A
NUT FLANGE
Notes: 1pc Show Image
SSA914C015A
[10] Contact
PJB132A201
LID ASSY
Contact
[11] Out of Stock
PJA451A510B
PUMP ASSY,DRAIN
Show Image
PJA451A510B
[12] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[12-13] Contact
PJB422C201
SOCKET DRA
Contact
[13] Contact
SSA423A088
HOSE,DRAIN
Contact
Substitute: PJB422C201
[14] In Stock
PJB437A203
FILTER AIR
Notes: W305XD420(T25)
[15] In Stock
PJB437A204
FILTER AIR
Notes: W720XD420(T25)
[16] Contact
PJA119A302
PLATE
Contact
[17] In Stock
SSA423A101
HOSE,DRAIN
Substitute: SSA423A101A Notes: ACCESSORIES Show Image
SSA423A101
[18] In Stock
V300Y38
CLAMP
Notes: ACCESSORIES, CLAMP Show Image
V300Y38
