Parts List
Key:
Instock.
Nilstock.
Contact MRE.

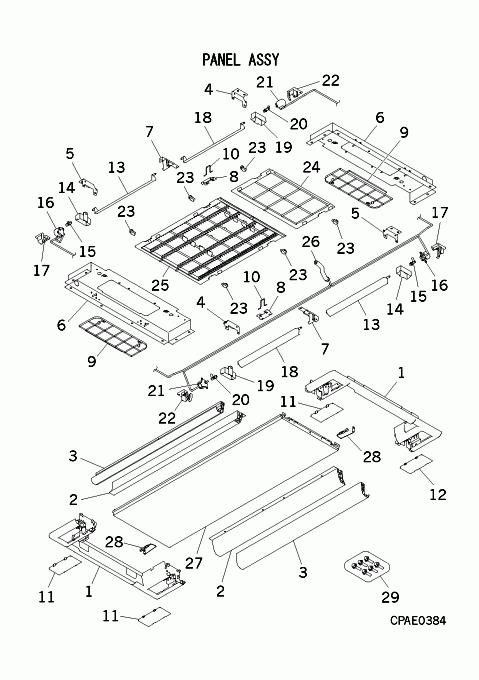

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
Contact
PJB123A202B
PANEL,SIDE
Contact
[1-16]
Contact
PJB122A203Z
PANEL ASSY,FRONT
Contact
[2]
Contact
PJB133A202H
LACE(OUT)
Contact
[3]
Contact
PJB133A203H
LACE(IN)
Contact
[4-7]
Contact
PJB436A200A
LOUVER
Contact
[5]
Contact
PJB129A200
LINK(LOUVER)
Contact
[6]
Contact
PJB129A200A
LINK(LOUVER)
Contact
[7]
Contact
PJB129A013
LINK (H)
Contact
[8]
In Stock
SSA511J306
MOTOR LOUVE
[8-14]
Contact
PJB511J200A
MOTOR ASSY,LOUVER
Contact
[9]
Contact
PJB523J100B
SWITCH ASSY(MICRO)
Contact
[10]
Contact
PJB129A202
LINK(M)
Contact
[11]
Contact
PJB144A200
CAM
Contact
[12]
Contact
PJB935A001
SLEEVE
Contact
[13]
Contact
PJB962B001A
WIRE
Contact
[14]
Contact
PJC504A101B
HARNESS ASSY
Contact
[15]
Contact
PJB122A201N
PANEL ASSY(S)
Contact
[16]
In Stock
PJB006A101A
PARTS SET
