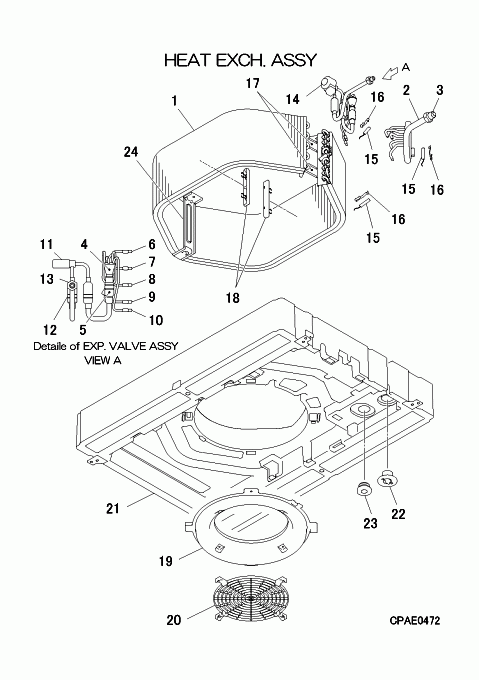

FDTW56KXZE3-W/1 HEAT EXCH. ASSY

FDTW56KXZE3-W/1 HEAT EXCH. ASSY

FDTW56KXZE3-W/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB311A300A
HEAT EXCH (AIR)
Contact
Notes: !
[1-18] Contact
PJB301A310
HEAT EXCH ASSY(AIR
Contact
[2-3] Contact
PJB315D321
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA323F092C
UNION,SOLDER
Contact
[4] Contact
SSA315A306AC
DISTRIBUTOR
Contact
Notes: !
[4-10] Contact
PJB315A304A
DISTRIBUTOR ASSY
Contact
Notes: !
[4-13] Contact
PJB387F310
VALVE ASSY,EXPANSI
Contact
[5] Contact
SSA357A051J
STRAINER
Contact
[6] Contact
PJB315B434
CAPILLARY
Contact
Notes: !D2.8XD4.0 L100
[7] Contact
PJB315B434A
CAPILLARY
Contact
Notes: !D2.2XD4.0 L180
[8] Contact
PJB315B434B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[9] Contact
PJB315B434C
CAPILLARY
Contact
Notes: !D2.2XD4.0 L200
[10] Contact
PJB315B434D
CAPILLARY
Contact
Notes: !D2.4XD4.0 L180
[11] In Stock
SSA387F086B
VALVE,BODY(EXP)
Notes: SM
[12] Contact
SSA357A059C
STRAINER
Contact
[13] Contact
SSA323F092
UNION,SOLDER
Contact
[14] In Stock
SSA382F228AV
COIL, SOLENOID
Notes: FOR SM, EEV
[15] Contact
PJF551A002N
SENSOR ASSY(TEMP)
Contact
Notes: THI-R1,2,3
[16] In Stock
PSA941F001
SPRING LEAF
Notes: FOR THI-R, 1pc ONLY Show Image
PSA941F001
[17] Contact
PJB141A300
PLATE,BAFFLE
Contact
[18] Contact
PJA129A702C
DIRECTOR,AIR
Contact
[19] Contact
PJB433A300
BELLMOUTH
Contact
[20] Contact
PJB131A203
GUARD,FAN
Contact
[21-23] Contact
PJB454A300
PAN ASSY,DRAIN
Contact
[22] Contact
PJB129A312
COVER ASSY
Contact
[23] In Stock
SSA326A048
PLUG
Show Image
SSA326A048
[24] Contact
PJB116A319A
BRACKET(HEAT)
Contact
