FDTW56KXE6D HEAT EXCH. ASSY

FDTW56KXE6D HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

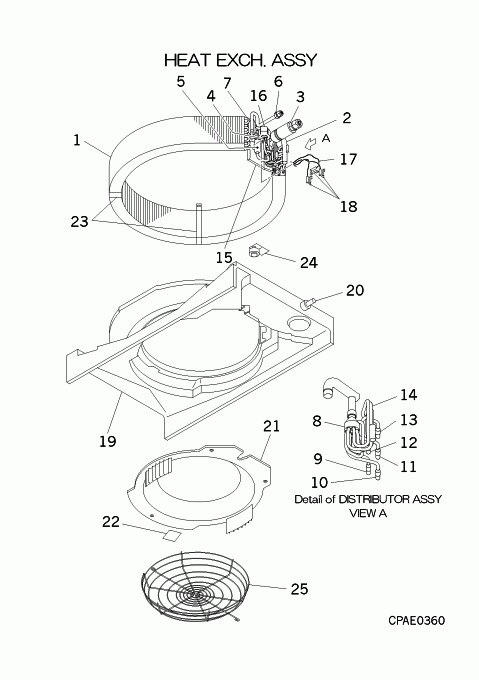

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB311A208
HEAT EXCH(AIR)
Contact
[1-18] Contact
PJB301A226F
HEAT EXCH ASSY(AIR
Contact
[2-3] Contact
PJB315D218H
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F012G
UNION,SOLDER
Contact
Notes: GAS
[4] In Stock
SSA387F047B
EXP VALVE
Notes: SM, EXPANSION VALVE BODY Show Image
SSA387F047B
[5] In Stock
SSA357A059T
STRAINER
[6] Contact
SSA323F075
UNION
Contact
Notes: LIQ.
[7] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[8] Contact
SSA315A252D
DISTRIBUTOR
Contact
[8-14] Contact
PJB315A227
DISTRIBUTOR ASSY
Contact
[9] Contact
PJB315B419
CAPILLARY
Contact
Notes: !D3.0XD4.0 L200
[10] Contact
PJB315B420
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[11] Contact
PJB315B421
CAPILLARY
Contact
Notes: !D2.6XD4.0 L180
[12] Contact
PJB315B422
CAPILLARY
Contact
Notes: !D2.0XD4.0 L180
[13] Contact
PJB315B423
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[14] Contact
PJB315B424
CAPILLARY
Contact
Notes: !D2.0XD4.0 L200
[15] Contact
PJB141A203G
PLATE ASSY,BAFFLE
Contact
[16] In Stock
SSA382F228AH
COIL, SOLENOID
Notes: FOR SM
[17] Contact
PSA551A010AA
SENSOR ASSY(TEMP)
Contact
Notes: THI-R1,2,3
[18] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[19-20] Contact
PJB454A200A
PAN ASSY,DRAIN
Contact
[20] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[21] Contact
PJB433A200
BELLMOUTH
Contact
[22] Contact
RSA011H005B
LABEL,NOTICE
Contact
[23] Contact
PJB116A230A
BRACKET
Contact
[24] Contact
PJA536A501D
SWITCH ASSY,FLOAT
Contact
Notes: FS
[25] Contact
PJB131A201
GUARD,FAN
Contact
