FDTW45KXZE3-W/1 CONTROL AND PARTS SET

FDTW45KXZE3-W/1 CONTROL AND PARTS SET

FDTW45KXZE3-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

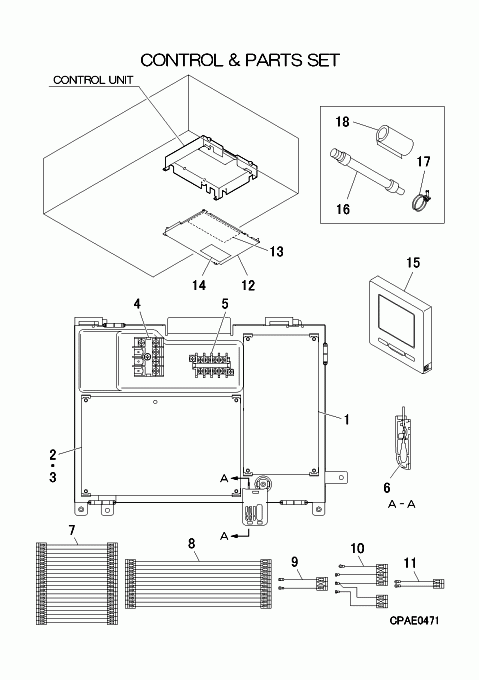

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJA505A229NF
PWB ASSY(CONTROL)
Contact
Notes: ONLY FOR SUPPLY PARTS
[1-11] Contact
PJB501A302KF
CONTROL UNIT
Contact
Notes: !
[2-3] Contact
PJA505A331G
PWB ASSY(POWER)
Contact
Notes: ONLY FOR SUPPLY PARTS
[3] In Stock
SSA564A149AC
FUSE(CURRENT)
Notes: F3 2A, 2 amp fuse
[4] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[5] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[6] Contact
PSA551A001JA
SENSOR ASSY
Contact
Notes: THI-A
[7] In Stock
PJF504A001B
WIRING(LM)
Notes: CNJ2- CNJ PWB Show Image
PJF504A001B
[8] Contact
PJG504A024
WIRING(PWB)
Contact
Notes: CNW2 PWB- CNW1 PWB
[9] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[10] Contact
PJF504A036N
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB
[11] Contact
PJF504A010H
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[12] Contact
PJB142A303A
LID,CONTROL BOX
Contact
[13] Contact
PJB011G308
LABEL,WIRING
Contact
Notes: !
[14] In Stock
PSA011H046
LABEL,NOTICE
[15] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[16] In Stock
PSA423A004B
HOSE ASSY,DRAIN
Show Image
PSA423A004B
[16-18] Contact
PJF008A001CC
PARTS SET
Contact
[17] In Stock
V300Y32
HOSE CLAMP
[18] Contact
PJF153B010A
INSULATION,PIPE
Contact
[19] Contact
PJB011F316D
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDTW45KXZE3-W/1 CONTROL AND PARTS SET Category:
