FDTW45KXE6F/F CONTROL AND PARTS SET

FDTW45KXE6F/F CONTROL AND PARTS SET

Available Parts

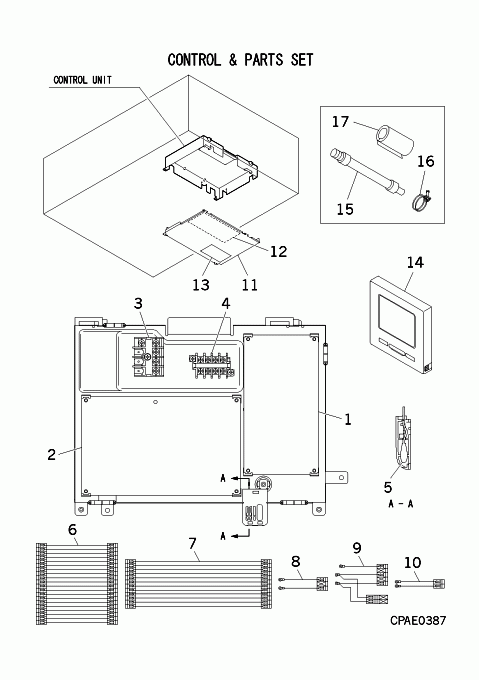

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A229NA PWB ASSY(CONTROL) Contact Notes: ONLY FOR SUPPLY PARTS   Contact
  • [1-10] PJB501A302FF CONTROL UNIT Contact Notes: !   Contact
  • [2] PJA505A331BD PWB ASSY In Stock Notes: ONLY FOR SUPPLY PARTS Show Image
  • [3] SSA561B702C BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [4] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [5] PSA551A001JA SENSOR ASSY Contact Notes: THI-A   Contact
  • [6] PJF504A001B WIRING(LM) In Stock Notes: CNJ2- CNJ PWB, CNJ2- CNJ PWB Show Image
  • [7] PJG504A001 WIRING(PWB) Contact Notes: CNW2- CNW1, CNW2 PWB- CNW1 PWB   Contact
  • [8] PJF504A006K WIRING(TB,XY) In Stock Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB
  • [9] PJG504A007A WIRING(TB,POWER) Contact Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU   Contact
  • [10] PJF504A010H WIRING(TB,AB) Contact Notes: TB2 A,TB2 B- CNK1 PWB, TB2 A,TB2 B- CNK1 PWB   Contact
  • [11] PJB142A303A LID,CONTROL BOX Contact   Contact
  • [12] PJB011G305 LABEL,WIRING Contact Notes: !   Contact
  • [13] PSA011H046 LABEL,NOTICE Contact   Contact
  • [14] PJZ502A031AC ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX3A   Contact
  • [15] SSA423A101A HOSE,DRAIN In Stock Substitute: SSA423A101C Notes: SEE C: CONTROL AND PARTS SET
  • [15-17] PJF008A001BD PARTS SET Contact   Contact
  • [16] V300Y42 HOSE CLAMP Contact Substitute: V300Y42X001U   Contact
  • [17] SSA153B016BA INSULATION,PIPE In Stock Show Image
  • [18] PJB011F313D LABEL,MODEL NAME Contact Notes: !   Contact
