FDTW45KXE6F/1 FAN ASSY AND CABINET

Name: FDTW45KXE6F/1 FAN ASSY AND CABINET
SKU: FDTW45KXE6F/1 FAN ASSY AND CABINET
Availability: InStock

FDTW45KXE6F/1 FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

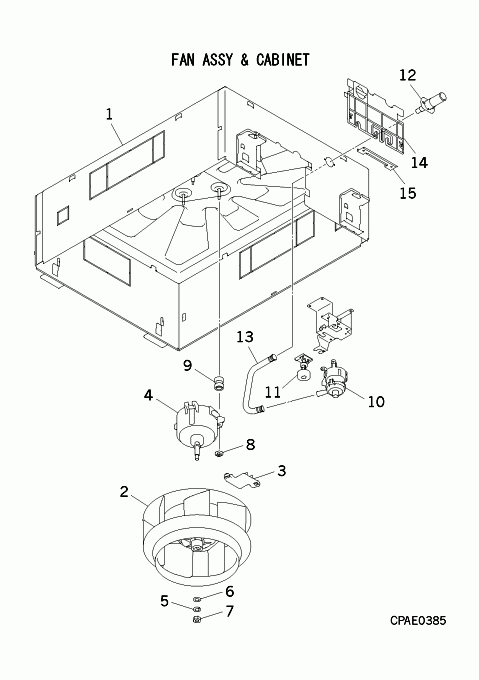

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJB100A300

CABINET ASSY

Contact

[2] In Stock

SSA431J024

FAN,TURBO

[3] Contact

PJA129A780

PLATE

Contact

[4] In Stock

SSA512T115A

MOTOR,DC

[5] In Stock

W220R10

WASHER

Notes: 1pc ONLY Show Image

[6] In Stock

W205H10

WASHER

Notes: 1pc ONLY Show Image

[7] In Stock

N001A10

NUT

Notes: 1pc Show Image

[8] In Stock

SSA914C015

NUT FLANGE

Notes: 1pc Show Image

[9] In Stock

SSA941C309A

CUSION RUBBER

Notes: 1pc only - SOLD INDIVIDUALLY

[10] In Stock

SSA451A009B

PUMP,DRAIN

Show Image

[10-11] In Stock

PJB451A104

PUMP ASSY,D

[11] Contact

SSA536A030B

SWITCH,FLOAT

Contact

Notes: FS

[12] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[12-13] Contact

PJC422C102

SOCKET ASSY,DRAIN

Contact

[13] In Stock

SSA423A100

HOSE,DRAIN

[14] Contact

PJB132A304

LID ASSY

Contact

[15] Contact

PJB142A304

COVER

Contact

[16] In Stock

SSA423A101A

HOSE,DRAIN

Notes: SEE D: CONTROL & PARTS SET, SEE C: CONTROL & PARTS SET

[17] In Stock

V300Y38

CLAMP

Notes: SEE D: CONTROL & PARTS SET, CLAMP Show Image

SKU: FDTW45KXE6F/1 FAN ASSY AND CABINET Category: Uncategorised
