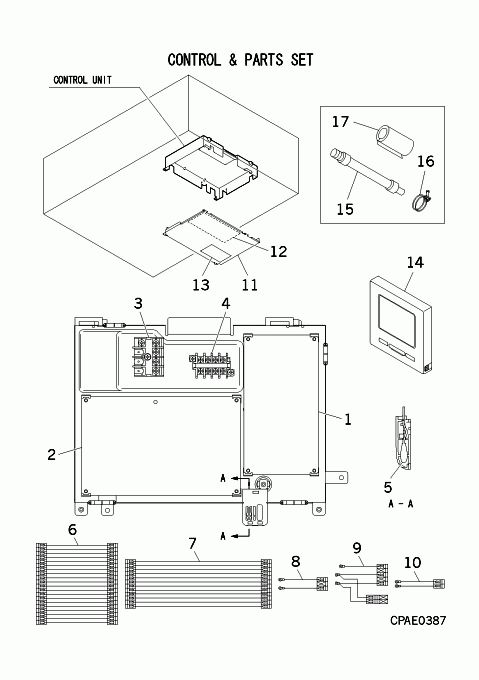

FDTW45KXE6F/1 CONTROL AND PARTS SET

FDTW45KXE6F/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A229BA
PWB ASSY CO
Show Image
PJA505A229BA
[1-10] Contact
PJB501A302BF
Contact
[2] In Stock
PJA505A331BD
PWB ASSY
Show Image
PJA505A331BD
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
PSA551A008AB
SENSOR
Notes: THI-A, THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR Show Image
PSA551A008AB
[6] In Stock
PJF504A001B
WIRING(LM)
Notes: CNJ2- CNJ PWB Show Image
PJF504A001B
[7] In Stock
PJG504A001
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1
[8] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[9] Contact
PJG504A007A
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU
[10] Contact
PJF504A010H
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[11] Contact
PJB142A303
LID,CONTROL BOX
Contact
[12] Contact
PJB011G302B
LABEL,WIRING
Contact
[13] Contact
PSA011H032
LABEL,NOTICE
Contact
[14] Contact
PJZ502A024AB
Advanced Wired Remote
Contact
Notes: RC-EX1A, SALES ITEM - ECO TOUCH
[15] In Stock
SSA423A101A
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS SET
[15-17] Contact
PJF008A001M
PARTS SET
Contact
[16] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[17] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[18] Contact
PJB011F303D
Contact
