FDTW28KXE6F/F PANEL ASSY

FDTW28KXE6F/F PANEL ASSY

Available Parts

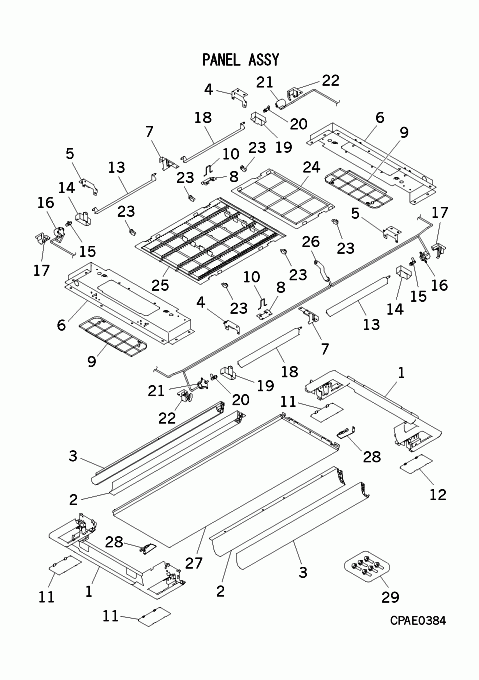

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJB122A308 PANEL,FRONT Contact   Contact
  • [1-26] PJB122A304D PANEL ASSY,FRONT Contact   Contact
  • [1-29] PJB122A300AB PANEL ASSY,FRONT Contact Notes: !TW-PSA-26W-E/F   Contact
  • [2] PJB133A208 LACE ASSY(IN) Contact   Contact
  • [3] PJB133A207 LACE(OUT) Contact   Contact
  • [4] PJB116A325 BRACKET,LACE Contact   Contact
  • [5] PJB116A325A BRACKET,LACE Contact   Contact
  • [6] PJB116A323A BRACKET ASSY,SIDE Contact   Contact
  • [7] PJB116A326 BRACKET ASSY,CENTE Contact   Contact
  • [8] PJB116A327 BRACKET,WIRE Contact   Contact
  • [9] PJB132A308 LID ASSY,PANEL Contact   Contact
  • [10] PJF962C001A WIRE Contact   Contact
  • [11] PJB132A301 LID,CORNER Contact   Contact
  • [12] PJB132A309A LID,CORNER Contact   Contact
  • [13] PJB436A300A LOUVER,BLOW Contact   Contact
  • [13-17] PJB436A302 LOUVER ASSY,BLOW Contact   Contact
  • [14] PJB129A302 CLAMP Contact   Contact
  • [15] PJA144A750A CRANK(A) Contact   Contact
  • [16] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [16-17] PJF512T001 MOTOR ASSY In Stock Show Image
  • [17] PJF129A003 SUPPORT(MOTOR) Contact   Contact
  • [18] PJB436A300A LOUVER,BLOW Contact   Contact
  • [18-22] PJB436A302A LOUVER ASSY,BLOW Contact   Contact
  • [19] PJB129A302 CLAMP Contact   Contact
  • [20] PJA144A750A CRANK(A) Contact   Contact
  • [21] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [21-22] PJF512T001A MOTOR ASSY In Stock Show Image
  • [22] PJF129A003A SUPPORT(MOTOR) Contact   Contact
  • [23] PJB129A303 STOPPER,F In Stock
  • [24] PJB437A300B FILTER,AIR Contact Notes: W237.3XD408( 7)   Contact
  • [25] PJB437A301B FILTER,AIR Contact Notes: W532XD408( 19)   Contact
  • [26] PJB504A300B WIRING ASSY Contact Notes: LM1,LM2,LM3,LM4- CNJ2   Contact
  • [27] PJB122A311 PANEL ASSY(S) Contact   Contact
  • [28] PJB937G300 STRAP Contact   Contact
  • [29] PJB008A300 PARTS SET Contact   Contact
SKU: FDTW28KXE6F/F PANEL ASSY Category:
