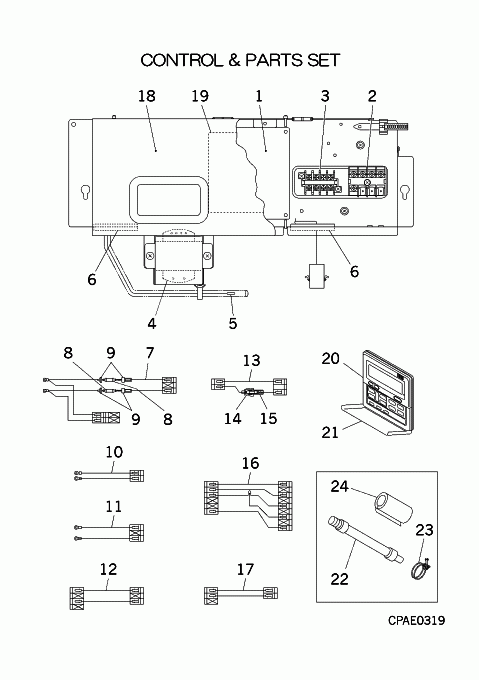

FDTW28KXE6 CONTROL AND PARTS SET

FDTW28KXE6 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A193ZD
PWB
Show Image
PJA505A193ZD
[1-17] Contact
PJB501A222BB
Contact
[2] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[3] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[4] In Stock
SSA554A487
TRANSFORMER
Notes: TR Show Image
SSA554A487
[5] In Stock
PSA551A008AB
SENSOR
Notes: THI-A, THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR Show Image
PSA551A008AB
[6] In Stock
SSA947B120
GROMMET
Notes: LENGTH 5.5CM Show Image
SSA947B120
[7-9] Contact
PJB504A234C
WIRING(TB,POWER)
Contact
[8] In Stock
SSA564A116G
FUSE(CURRENT)
Notes: 3.15A, 3.15 AMP FUSE Show Image
SSA564A116G
[9] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[10] Contact
PJB504A235
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[11] Contact
PJB504A228
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[12] Contact
PJB504A229
WIRING(LM)
Contact
Notes: CNJ- CNJ2 PWB
[13-15] Contact
PJB504A238A
WIRING(DM)
Contact
Notes: CNR PWB- CNR2 DM
[14] In Stock
SSA564A139
FUSE(CURRENT)
Notes: 0.16A, F 0.16A Show Image
SSA564A139
[15] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[16] Contact
PJB504A231A
WIRING(FM)
Contact
Notes: CNF1- PWB CNM3
[17] In Stock
PJB504A237
WIRING(LS)
Notes: CNS2- CNS PWB
[18-19] Contact
PJB142A210B
LID ASSY,CONTROL B
Contact
[19] Contact
PJB011G225
LABEL,WIRING
Contact
[20-21] Contact
PJA502A800BC
CONTROL ASSY,REMOTE
Contact
Substitute: RC-E5 Notes: RC-E3, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4
[21] Contact
PJA129A708
COVER Z
Contact
[22] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[22-24] In Stock
PJA006A317L
INSTALLATION KIT
[23] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[24] In Stock
SSA153B016BA
INSULATION,PIPE
Show Image
SSA153B016BA
[25] Contact
PJB011F236A
Contact
SKU: FDTW28KXE6 CONTROL AND PARTS SET Category:
