FDTW140KXE6F/F PANEL ASSY

FDTW140KXE6F/F PANEL ASSY

Available Parts

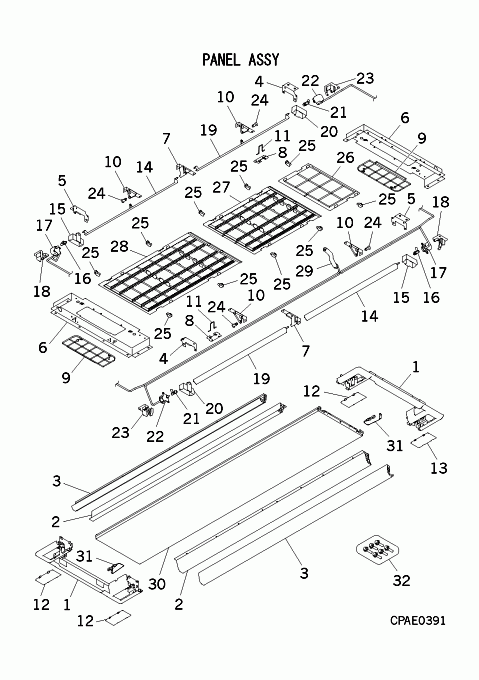

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJB122A308 PANEL,FRONT Contact   Contact
  • [1-29] PJB122A305D PANEL ASSY,FRONT Contact   Contact
  • [1-32] PJB122A301AB PANEL ASSY,FRONT Contact Notes: !TW-PSA-46W-E/F   Contact
  • [2] PJB133A208A LACE ASSY(IN) Contact   Contact
  • [3] PJB133A207A LACE(OUT) Contact   Contact
  • [4] PJB116A325 BRACKET,LACE Contact   Contact
  • [5] PJB116A325A BRACKET,LACE Contact   Contact
  • [6] PJB116A323A BRACKET ASSY,SIDE Contact   Contact
  • [7] PJB116A326 BRACKET ASSY,CENTE Contact   Contact
  • [8] PJB116A327 BRACKET,WIRE Contact   Contact
  • [9] PJB132A308 LID ASSY,PANEL Contact   Contact
  • [10] PJB116A302 BRACKET ASSY,LOUVE Contact   Contact
  • [11] PJF962C001A WIRE Contact   Contact
  • [12] PJB132A301 LID,CORNER Contact   Contact
  • [13] PJB132A309A LID,CORNER Contact   Contact
  • [14] PJB436A301 LOUVER,BLOW Contact   Contact
  • [14-18] PJB436A302B LOUVER ASSY,BLOW Contact   Contact
  • [15] PJB129A302 CLAMP Contact   Contact
  • [16] PJA144A750A CRANK(A) Contact   Contact
  • [17] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [17-18] PJF512T001 MOTOR ASSY In Stock Show Image
  • [18] PJF129A003 SUPPORT(MOTOR) Contact   Contact
  • [19] PJB436A301 LOUVER,BLOW Contact   Contact
  • [19-23] PJB436A302C LOUVER ASSY,BLOW Contact   Contact
  • [20] PJB129A302 CLAMP Contact   Contact
  • [21] PJA144A750A CRANK(A) Contact   Contact
  • [22] SSA512T017 MOTOR,STEPPING In Stock Substitute: SSA512T096 Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
  • [22-23] PJF512T001A MOTOR ASSY In Stock Show Image
  • [23] PJF129A003A SUPPORT(MOTOR) Contact   Contact
  • [24] PJB129A317 PIN(LOUVER) Contact   Contact
  • [25] PJB129A303 STOPPER,F In Stock
  • [26] PJB437A300B FILTER,AIR Contact Notes: W237.3XD408( 7)   Contact
  • [27] PJB437A301B FILTER,AIR Contact Notes: W532XD408( 19)   Contact
  • [28] PJB437A302B FILTER,AIR Contact Notes: W729.5XD408( 19)   Contact
  • [29] PJB504A300C WIRING ASSY Contact Notes: LM1,LM2,LM3,LM4- CNJ2   Contact
  • [30] PJB122A312 PANEL ASSY(S) Contact   Contact
  • [31] PJB937G300 STRAP Contact   Contact
  • [32] PJB008A300 PARTS SET Contact   Contact
SKU: FDTW140KXE6F/F PANEL ASSY Category:
