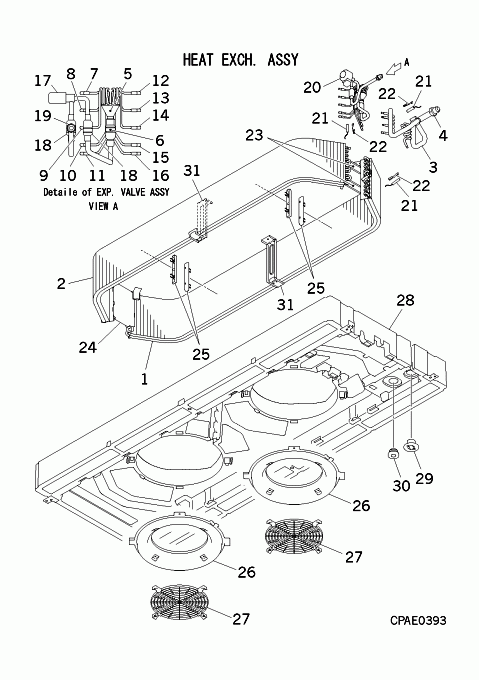

FDTW140KXE6F/F HEAT EXCH. ASSY

FDTW140KXE6F/F HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB311A302B
HEAT EXCH (AIR)
Contact
Notes: !
[1-25] Contact
PJB301A307A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
PJB311A302C
HEAT EXCH (AIR)
Contact
Notes: !
[3-4] Contact
PJB315D302
HEADER ASSY,GAS
Contact
Notes: !
[4] Contact
SSA323F092G
UNION,SOLDER
Contact
[5] Contact
SSA315A306AJ
DISTRIBUTOR
Contact
Notes: !
[5-16] Contact
PJB315A306
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A051
STRAINER
Show Image
SSA357A051
[7] Contact
PJB315B436
CAPILLARY
Contact
Notes: !D2.8XD4.0 L140
[8] Contact
PJB315B436A
CAPILLARY
Contact
Notes: !D2.2XD4.0 L140
[9] Contact
PJB315B436B
CAPILLARY
Contact
Notes: !D2.8XD4.0 L160
[10] Contact
PJB315B436C
CAPILLARY
Contact
Notes: !D2.0XD4.0 L180
[11] Contact
PJB315B436D
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[12] Contact
PJB315B436F
CAPILLARY
Contact
Notes: !D2.8XD4.0 L140
[13] Contact
PJB315B436G
CAPILLARY
Contact
Notes: !D2.2XD4.0 L140
[14] Contact
PJB315B436H
CAPILLARY
Contact
Notes: !D2.8XD4.0 L160
[15] Contact
PJB315B436J
CAPILLARY
Contact
Notes: !D2.2XD4.0 L180
[16] Contact
PJB315B436K
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[17] In Stock
SSA387F045B
VALVE,BODY(EXP)
Notes: SM Show Image
SSA387F045B
[18] In Stock
SSA357A051A
STRAINER
Show Image
SSA357A051A
[19] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[20] In Stock
SSA382F229AD
SOLENOID
Notes: FOR SM
[21] Contact
PJF551A002N
SENSOR ASSY(TEMP)
Contact
Notes: THI-R1,2,3
[22] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[23] Contact
PJB141A300A
PLATE,BAFFLE
Contact
[24] Contact
PJB141A301
PLATE,BAFFLE
Contact
[25] Contact
PJA129A702C
DIRECTOR,AIR
Contact
[26] Contact
PJB433A300
BELLMOUTH
Contact
[27] Contact
PJB131A203
GUARD,FAN
Contact
[28-30] Contact
PJB454A301
PAN ASSY,DRAIN
Contact
[29] Contact
PJB129A312
COVER ASSY
Contact
[30] In Stock
SSA326A048
PLUG
Show Image
SSA326A048
[31] Contact
PJB116A319A
BRACKET(HEAT)
Contact
SKU: FDTW140KXE6F/F HEAT EXCH. ASSY Category:
