FDTW140KXE6F/1 PANEL ASSY

FDTW140KXE6F/1 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

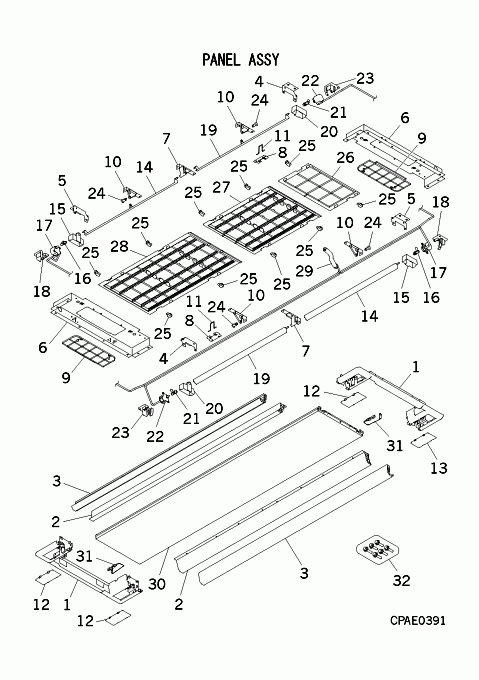

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB122A308
PANEL,FRONT
Contact
[1-29] Contact
PJB122A305A
PANEL ASSY,FRONT
Contact
Notes: !TW-PSA-46W-E/1
[2] Contact
PJB133A208A
LACE ASSY(IN)
Contact
[3] Contact
PJB133A207A
LACE(OUT)
Contact
[4] Contact
PJB116A325
BRACKET,LACE
Contact
[5] Contact
PJB116A325A
BRACKET,LACE
Contact
[6] Contact
PJB116A323
BRACKET ASSY,SIDE
Contact
[7] Contact
PJB116A326
BRACKET ASSY,CENTE
Contact
[8] Contact
PJB116A327
BRACKET,WIRE
Contact
[9] Contact
PJB132A308
LID ASSY,PANEL
Contact
[10] Contact
PJB116A302
BRACKET ASSY,LOUVE
Contact
[11] Contact
PJF962C001A
WIRE
Contact
[12] Contact
PJB132A301
LID,CORNER
Contact
[13] Contact
PJB132A306
LID,CORNER
Contact
[14] Contact
PJB436A301A
LOUVER,BLOW
Contact
Notes: 2014/5 -
[14-18] Contact
PJB436A302B
LOUVER ASSY,BLOW
Contact
[15] Contact
PJB129A302
CLAMP
Contact
[16] In Stock
PJA144A750
CRANK(A)
Show Image
PJA144A750
[17] In Stock
SSA512T017
MOTOR,STEPPING
Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
SSA512T017
[17-17] In Stock
PJF512T001
MOTOR ASSY
Show Image
PJF512T001
[18] Contact
PJF129A003
SUPPORT(MOTOR)
Contact
[19] Contact
PJB436A301A
LOUVER,BLOW
Contact
Notes: 2014/5 -
[19-23] Contact
PJB436A302C
LOUVER ASSY,BLOW
Contact
[20] Contact
PJB129A302
CLAMP
Contact
[21] In Stock
PJA144A750
CRANK(A)
Show Image
PJA144A750
[22] In Stock
SSA512T017
MOTOR,STEPPING
Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image
SSA512T017
[22-23] In Stock
PJF512T001A
MOTOR ASSY
Show Image
PJF512T001A
[23] Contact
PJF129A003A
SUPPORT(MOTOR)
Contact
[24] Contact
PJB129A317
PIN(LOUVER)
Contact
[25] In Stock
PJB129A303
STOPPER,F
Show Image
PJB129A303
[26] In Stock
PJB437A300
FILTER FDTW
Notes: W237.3XD408(T7)
[27] In Stock
PJB437A301
FILTER FDTW
Notes: W532XD408(T19)
[28] In Stock
PJB437A302
FILTER FDTW
Notes: W729.5XD408(T19)
[29] Contact
PJB504A300C
WIRING ASSY
Contact
Notes: LM1,LM2,LM3,LM4- CNJ2
[30] Contact
PJB122A312
PANEL ASSY(S)
Contact
[31] Contact
PJB937G300
STRAP
Contact
[32] Contact
PJB008A300
PARTS SET
Contact
