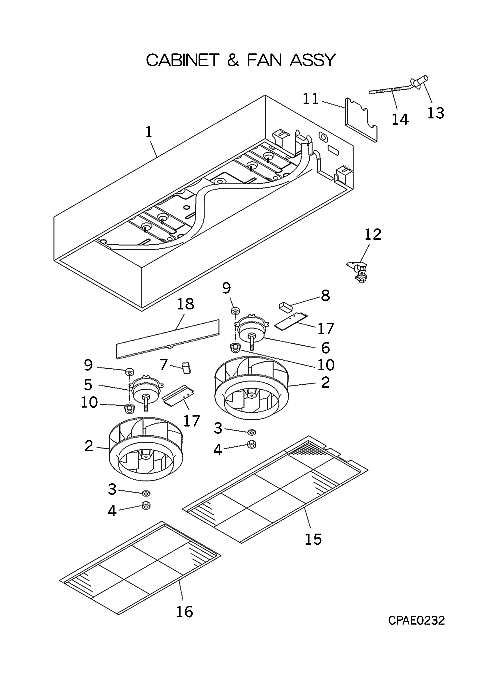

FDTW140KXE6D CABINET AND FAN ASSY

FDTW140KXE6D CABINET AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB100A202
CABINET ASY
Contact
[2] In Stock
SSA431J011
FAN,TURBO
[3] In Stock
W205H10
WASHER
Notes: 1pc ONLY Show Image
W205H10
[4] In Stock
N001A10
NUT
Notes: 1pc Show Image
N001A10
[5] Contact
SSA511T116F
MOTOR,AC
Contact
[6] Contact
SSA511T117F
MOTOR,AC
Contact
[7] Contact
SSA552A071
CAPACITOR
Contact
Notes: 1.5MF 400VAC
[8] Contact
SSA552A021
CAPACITOR
Contact
Notes: 2.0MF 400VAC
[9] In Stock
SSA941C296
CUSHION LUB
Show Image
SSA941C296
[10] In Stock
SSA914C015A
NUT FLANGE
Notes: 1pc Show Image
SSA914C015A
[11] Contact
PJB132A201A
LID ASSY
Contact
[12] Out of Stock
PJA451A510B
PUMP ASSY,DRAIN
Show Image
PJA451A510B
[13-14] Contact
PJB422C201
SOCKET DRA
Contact
[13] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[14] Contact
SSA423A088
HOSE,DRAIN
Contact
Substitute: PJB422C201
[15] In Stock
PJB437A200
FILTER FDTW
Notes: 1pc ONLY
[16] In Stock
PJB437A204
FILTER AIR
Notes: 1pc ONLY
[17] Contact
PJA119A302
PLATE
Contact
[18] Contact
PJB119A202
PLATE
Contact
[19] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[20] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
SKU: FDTW140KXE6D CABINET AND FAN ASSY Category:
