FDTW140KXE6 PANEL ASSY

FDTW140KXE6 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

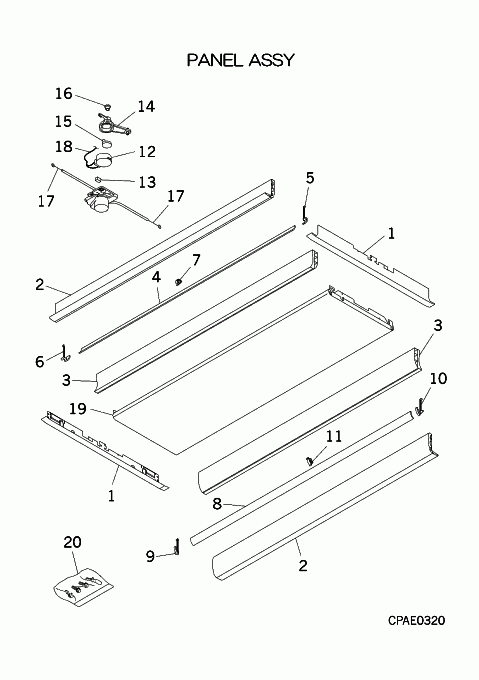

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJB123A202B
PANEL,SIDE
Contact
[1-20] Contact
PJB122A203AA
PANEL ASSY,FRONT
Contact
Notes: !TW-PSA-44W-E
[2] Contact
PJB133A202J
LACE(OUT)
Contact
[3] Contact
PJB133A203J
LACE(IN)
Contact
[4-7] Contact
PJB436A200B
LOUVER ASSY
Contact
[5] Contact
PJB129A200
LINK(LOUVER)
Contact
[6] Contact
PJB129A200A
LINK(LOUVER)
Contact
[7] Contact
PJB129A013
LINK (H)
Contact
[8-11] Contact
PJB436A200C
LOUVER
Contact
[9] Contact
PJB129A200
LINK(LOUVER)
Contact
[10] Contact
PJB129A200A
LINK(LOUVER)
Contact
[11] Contact
PJB129A013
LINK (H)
Contact
[12] In Stock
SSA511J306
MOTOR LOUVE
Show Image
SSA511J306
[12-18] Contact
PJB511J200A
MOTOR ASSY,LOUVER
Contact
[13] Contact
PJB523J100B
SWITCH ASSY(MICRO)
Contact
[14] Contact
PJB129A202
LINK(M)
Contact
[15] Contact
PJB144A200
CAM
Contact
[16] Contact
PJB935A001
SLEEVE
Contact
[17] Contact
PJB962B001A
WIRE
Contact
[18] Contact
PJC504A101B
HARNESS ASSY
Contact
Notes: LM,LM-CJ
[19] Contact
PJB122A201P
PANEL ASSY(S)
Contact
[20] In Stock
PJB006A101A
PARTS SET
Show Image
PJB006A101A
SKU: FDTW140KXE6 PANEL ASSY Category:
